Door Trim Seal
Recommended Trim
https://campcan.ca/door-trim-seal-per-ft/
Around 12 ft required to seal the edge of the Boler door opening.
Trim is 1/2″ (12.7mm) wide and fits up to a 1/4″ (6.4mm) edge, bulb is 0.625″ (16mm).
This gasket is a Trim-Lok Part #: 6100B3X1/4A
- 6100 = Series 100 trim with a 5/8" bulb diameter
- B3 = 3/8" trim width
- 1/4 = fits a 1/4" panel edge
- A = side bulb orientation (matches your picture)
Other Trim Options
Installation Options

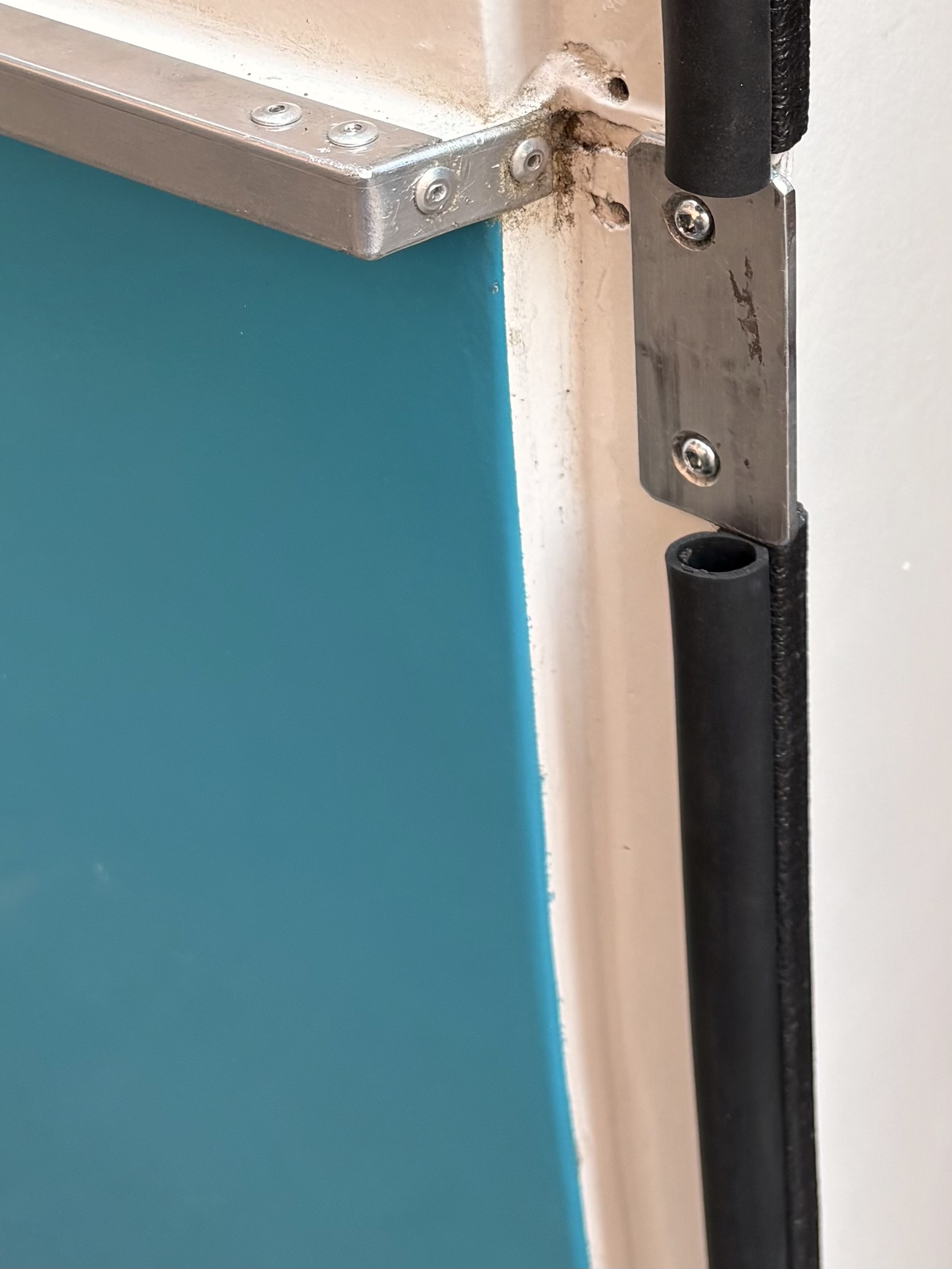

Cutout at Latch
This option works but does't look the best.

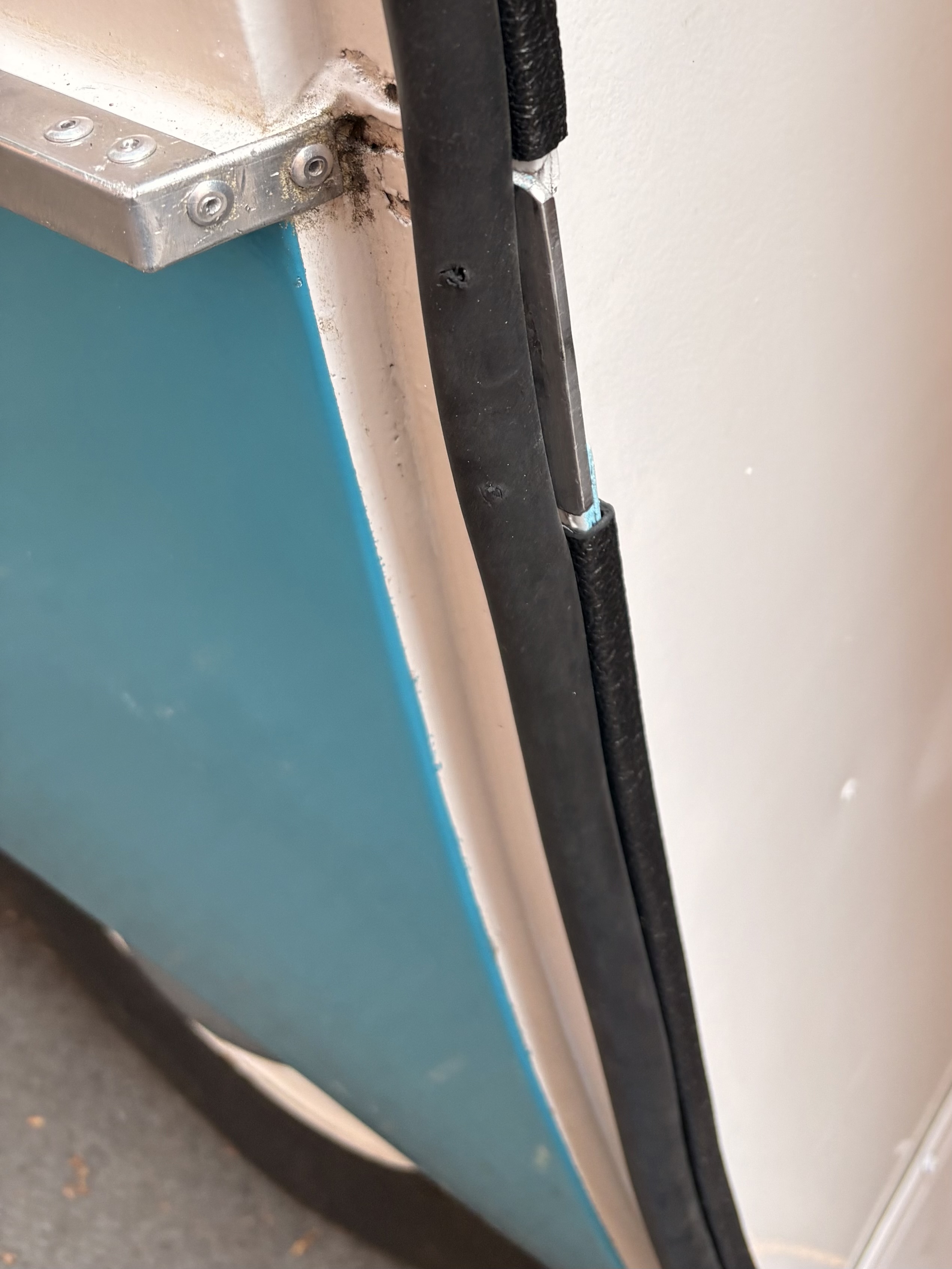

Over
This option is ideal if the latch will still connect afterwards. Mine did not!

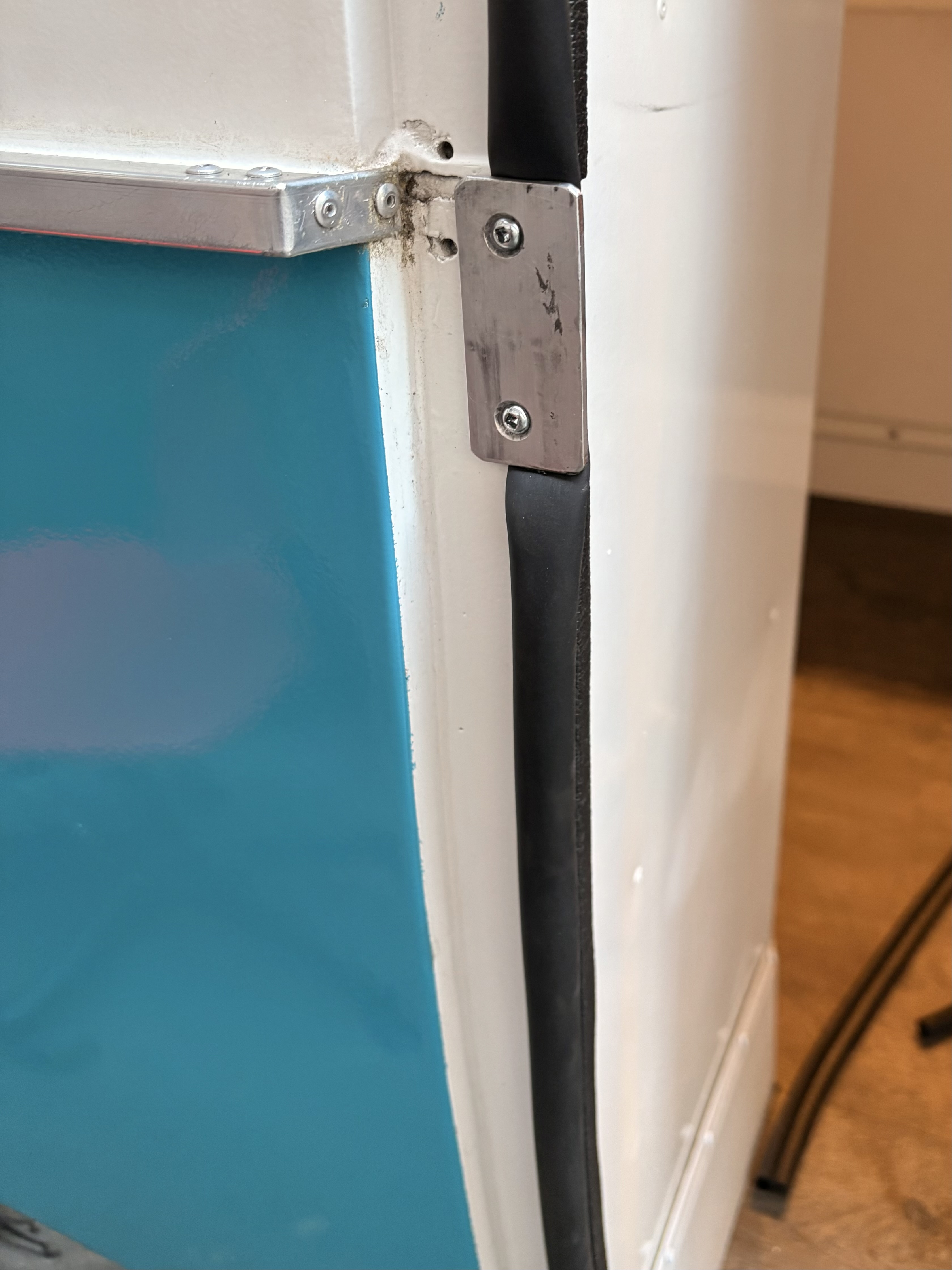

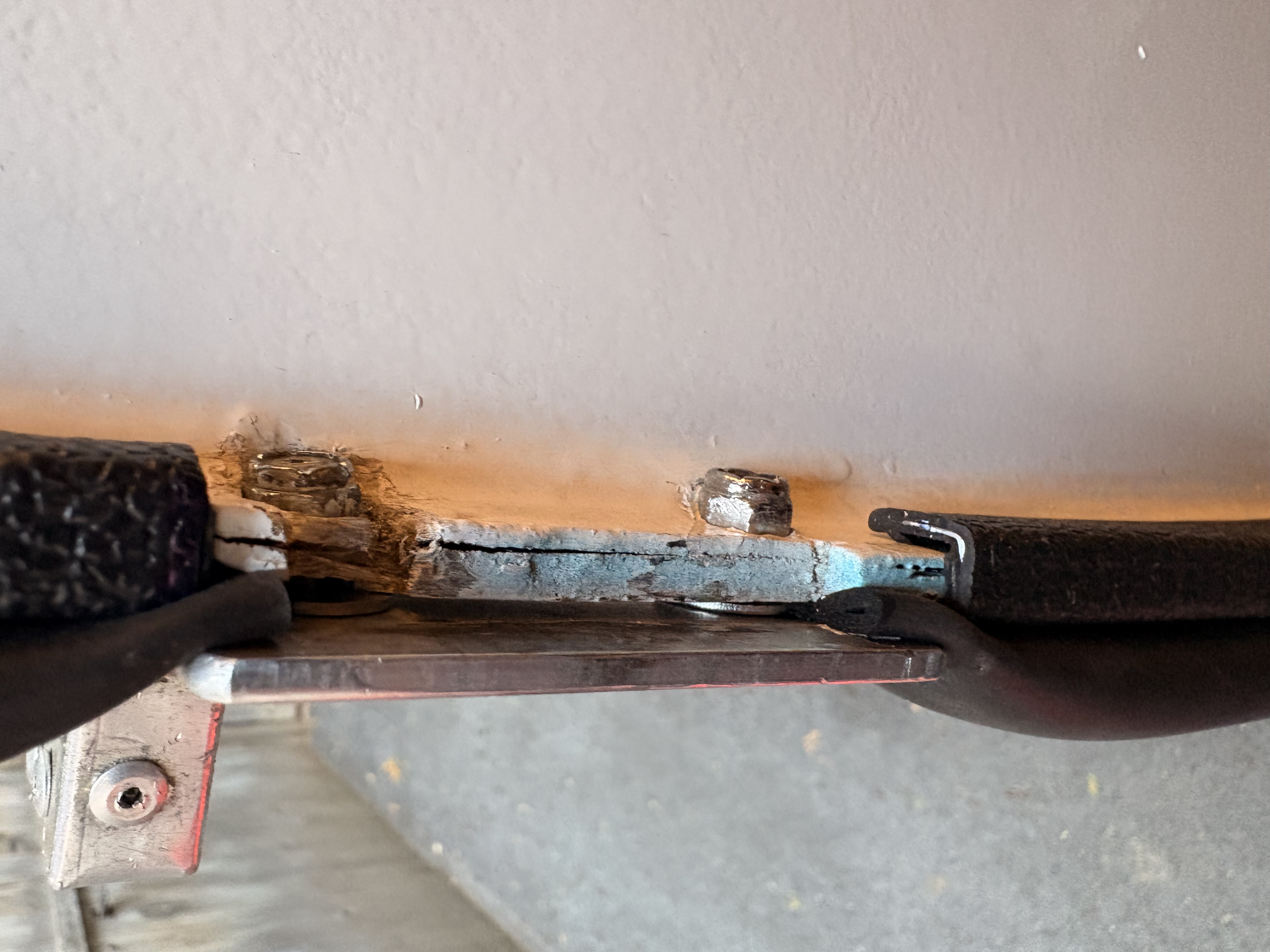

Under
This option puts the bulb under the door latch. This seems to look the best and the door closes properly.
