Back Story
The history behind this thing is actually pretty interesting. Frigidaire was founded in 1918 as the Guardian Frigerator Company (yes, the spelling is correct) in Indiana. A year later, GM co-founder William C. Durant invested in the company, and it was renamed Frigidaire shortly thereafter.
GM owned Frigidaire between 1919 to 1979. During that time, the company also manufactured the compressors used in GM’s air conditioning units for cars, including everything from Cadillacs to Chevrolets

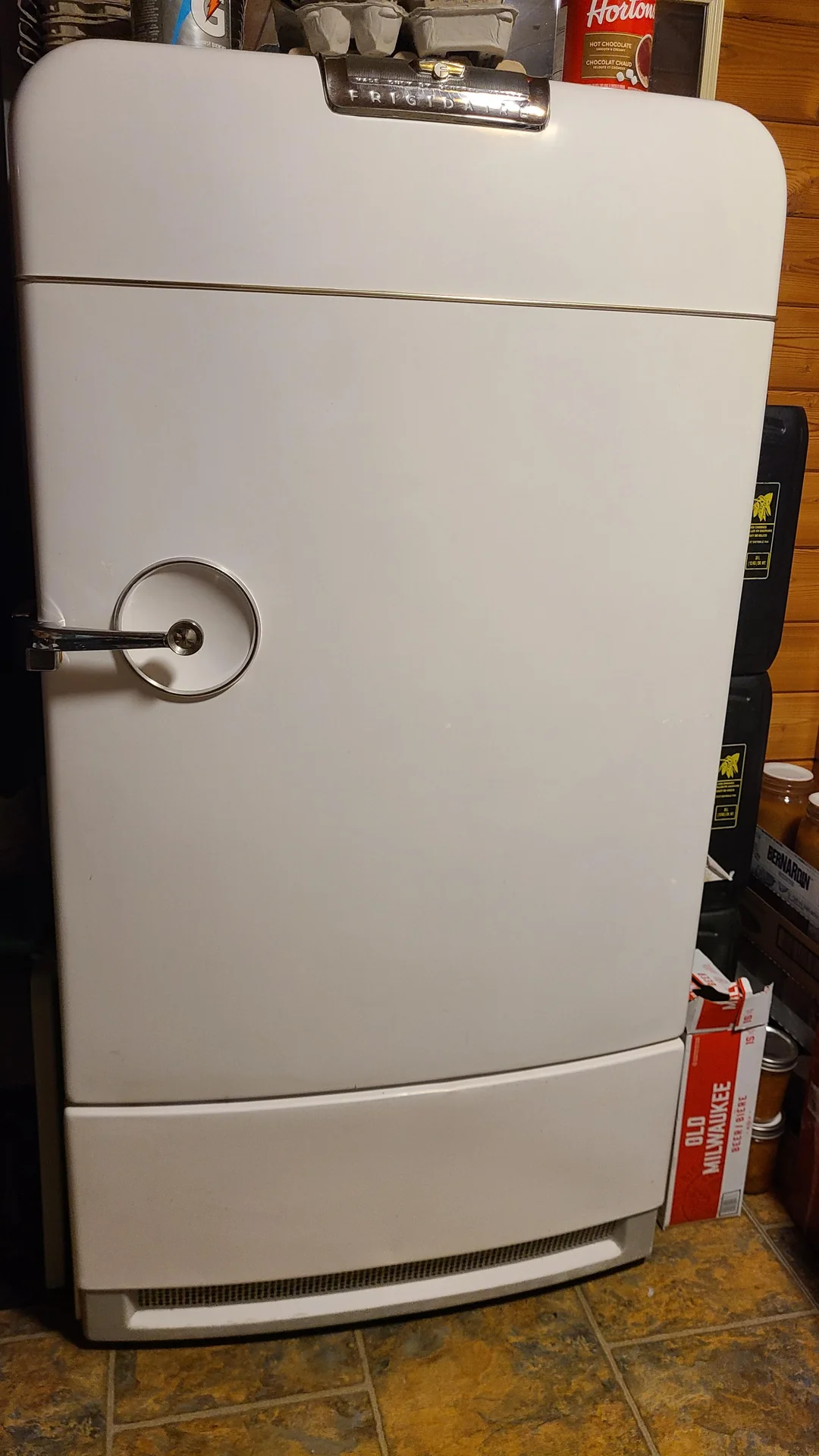

That handle almost looks like it belongs on the fascia of an early 1950s Cadillac Eldorado, and it definitely follows the “form over function” aesthetic that was so popular at the time. This thing is just dripping with retro coolness.

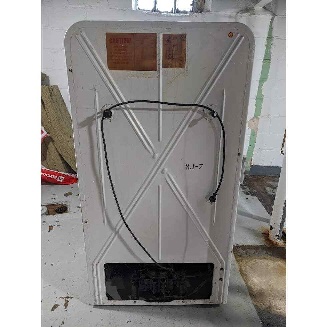

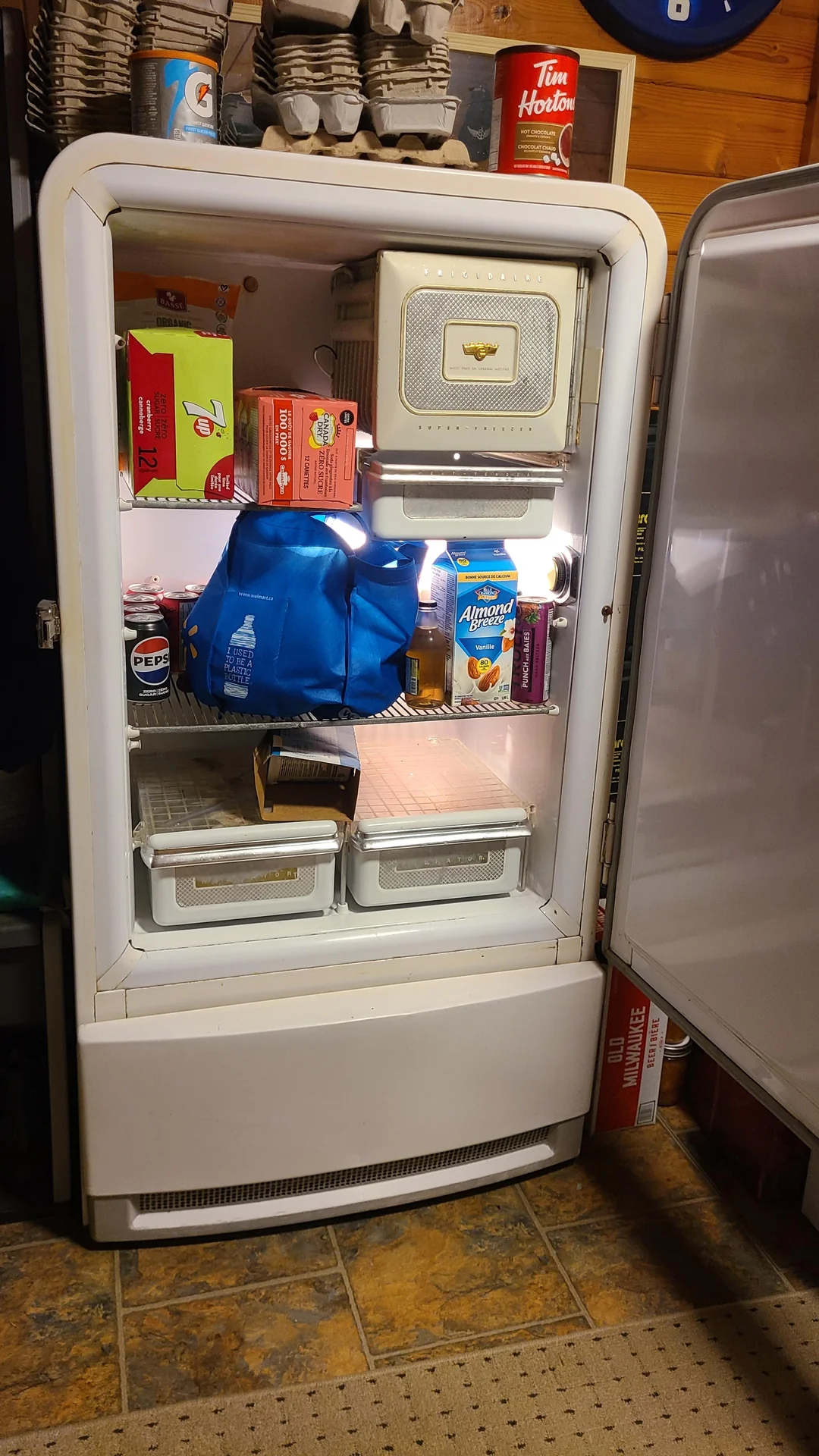

Pictures
Restoration
Cleaning
A good scrubbing and vacuuming seems to have helped.
Freezer Door Repair
The freezer door was falling off. I added some screw to the hinge to compensate for the broken hinge weld. Back cover of the freezer door has a plastic cover which will need to be repaired or replaced. Seems like something that could be 3d printed.
<PIC>

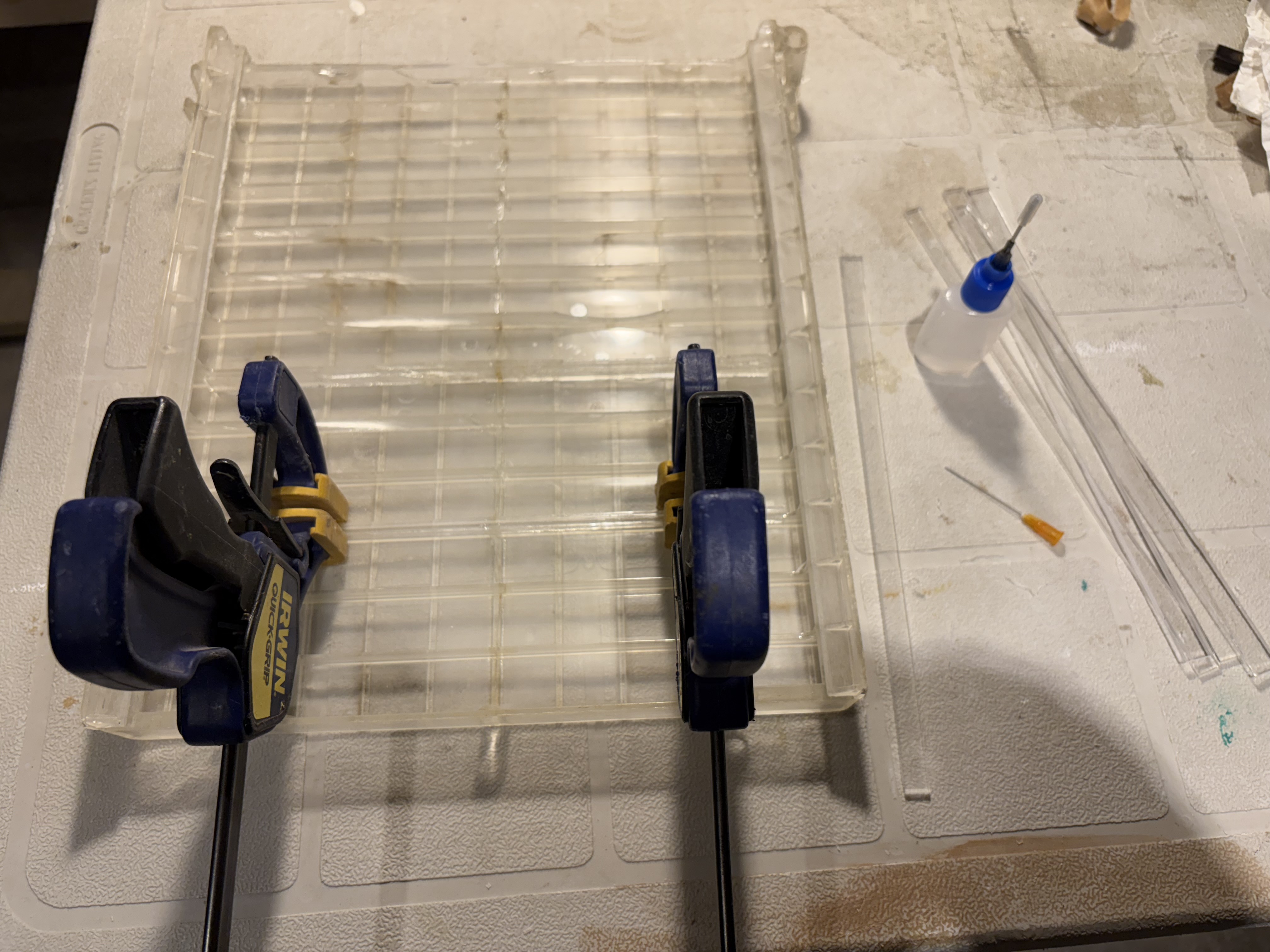

Fixing the Plastic Shelves

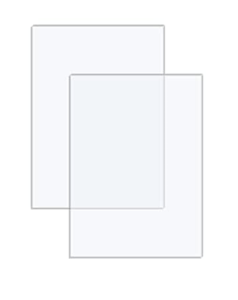

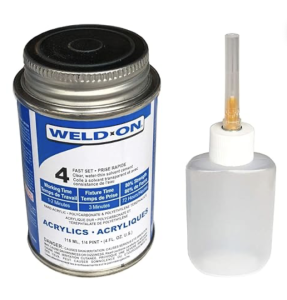

Using some acrylic cement (Weldon #4), I glued all of the cracks and reinforced with newly cut pieces of acrylic (1/8" thick).
Doubled up a few of the ribs on the underside.

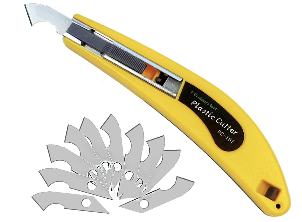

Supplies used:
Wheels

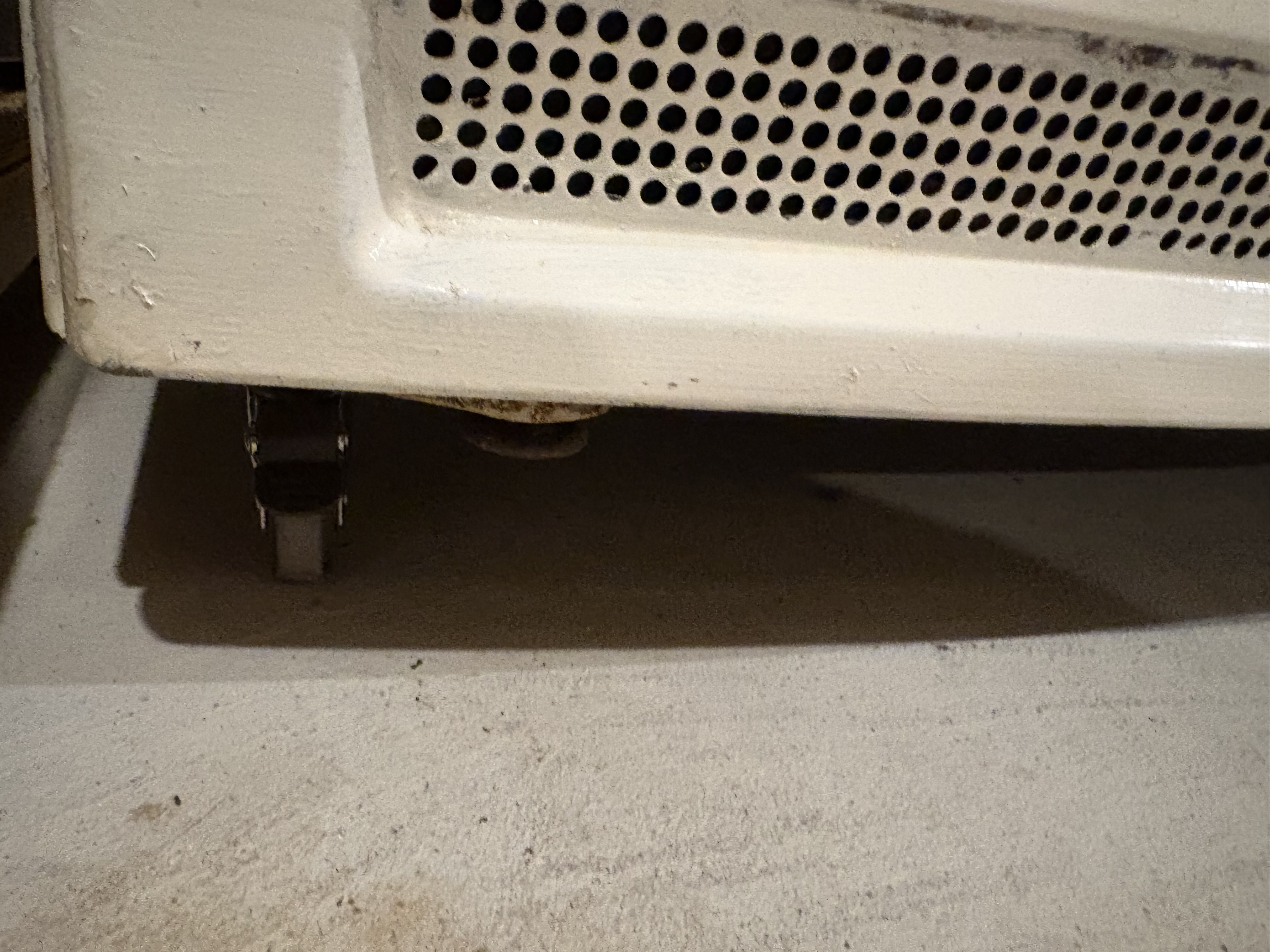

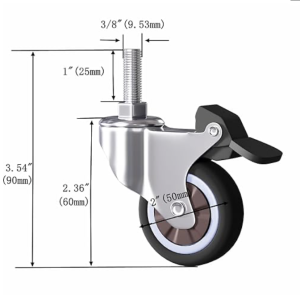

I added some 2" casters to help move it around. Need to make some longer levelling feet next.
https://www.amazon.ca/dp/B0CWZ2RMKQ?ref=ppx_yo2ov_dt_b_fed_asin_title

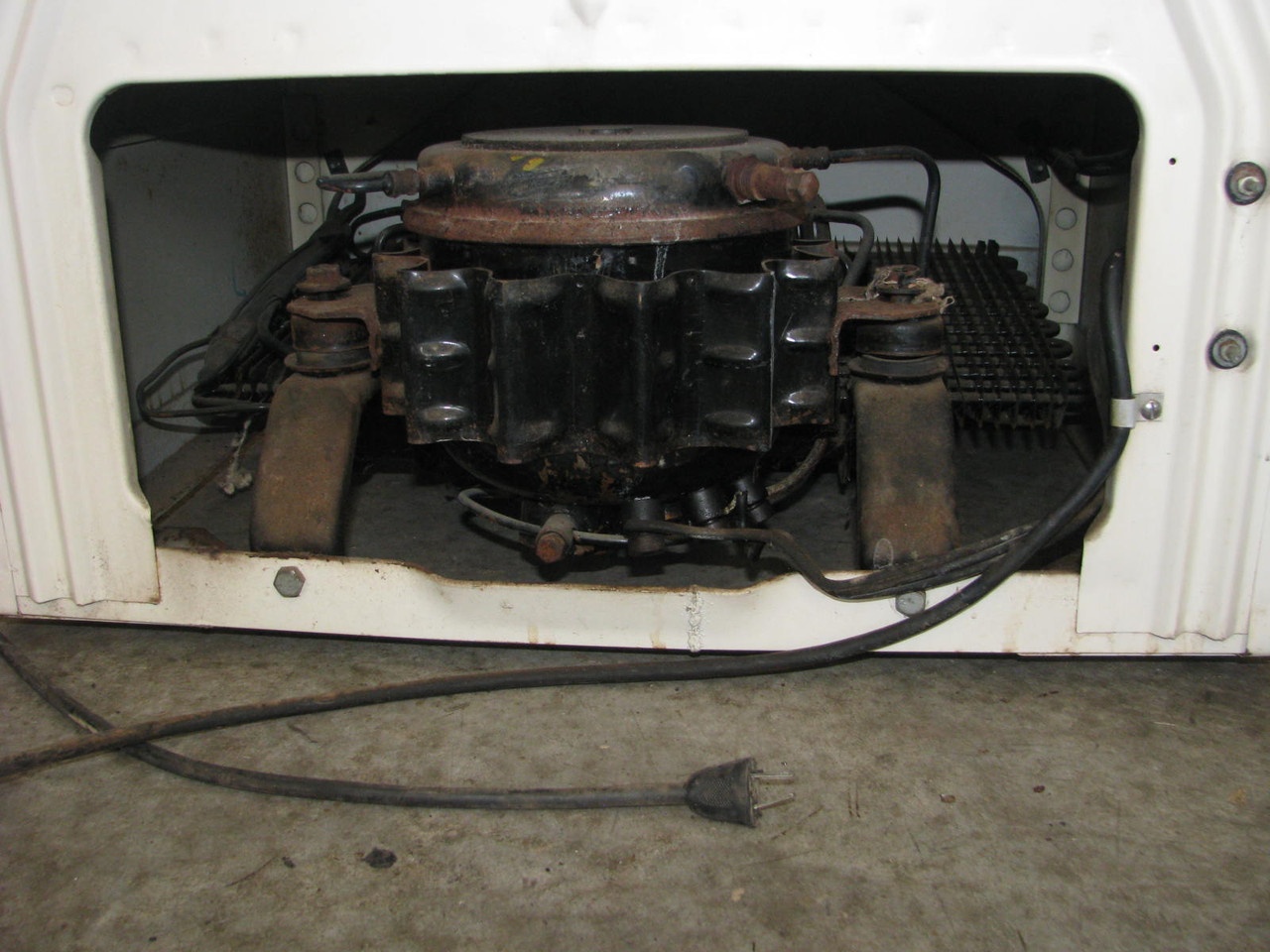

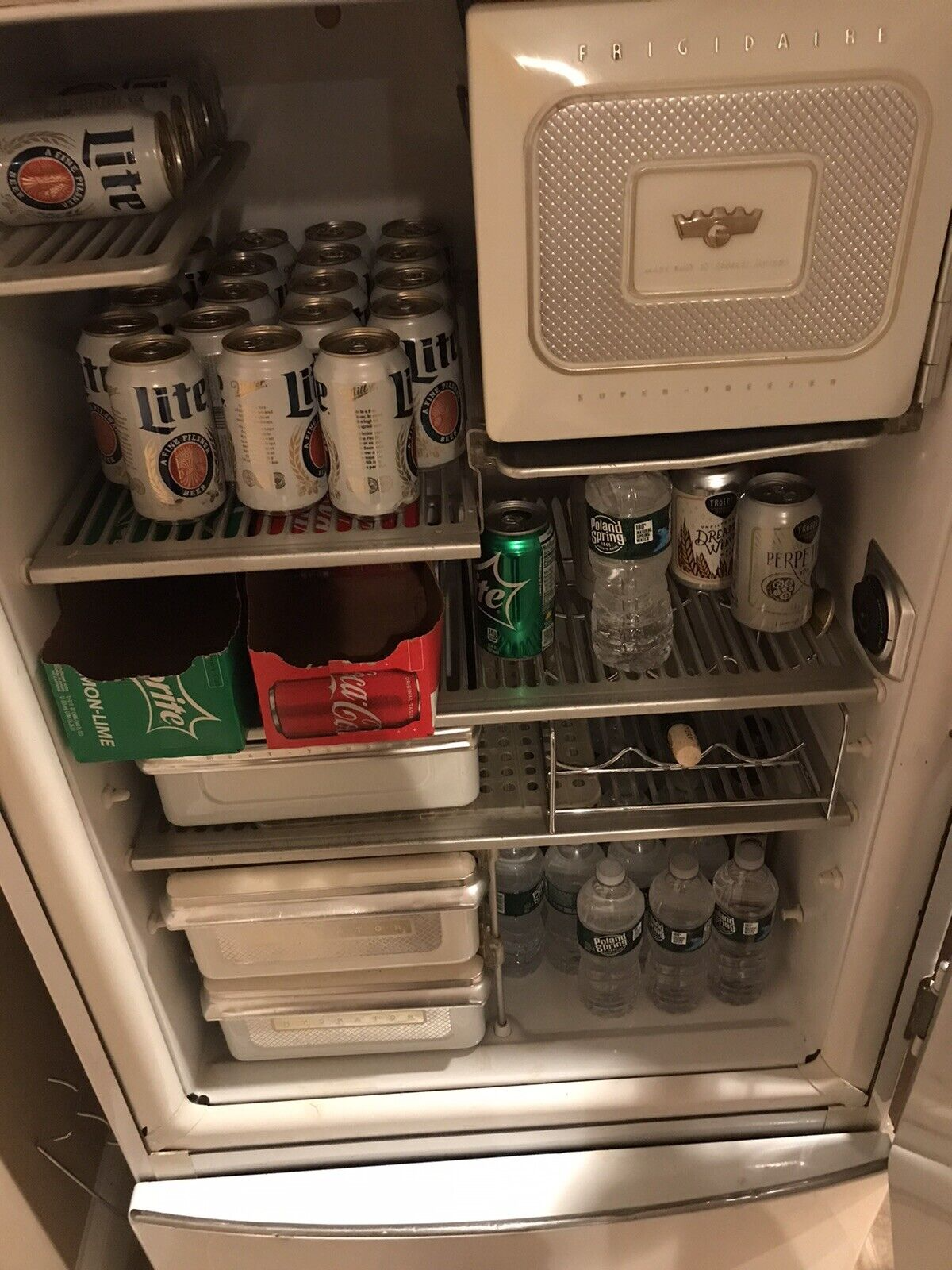

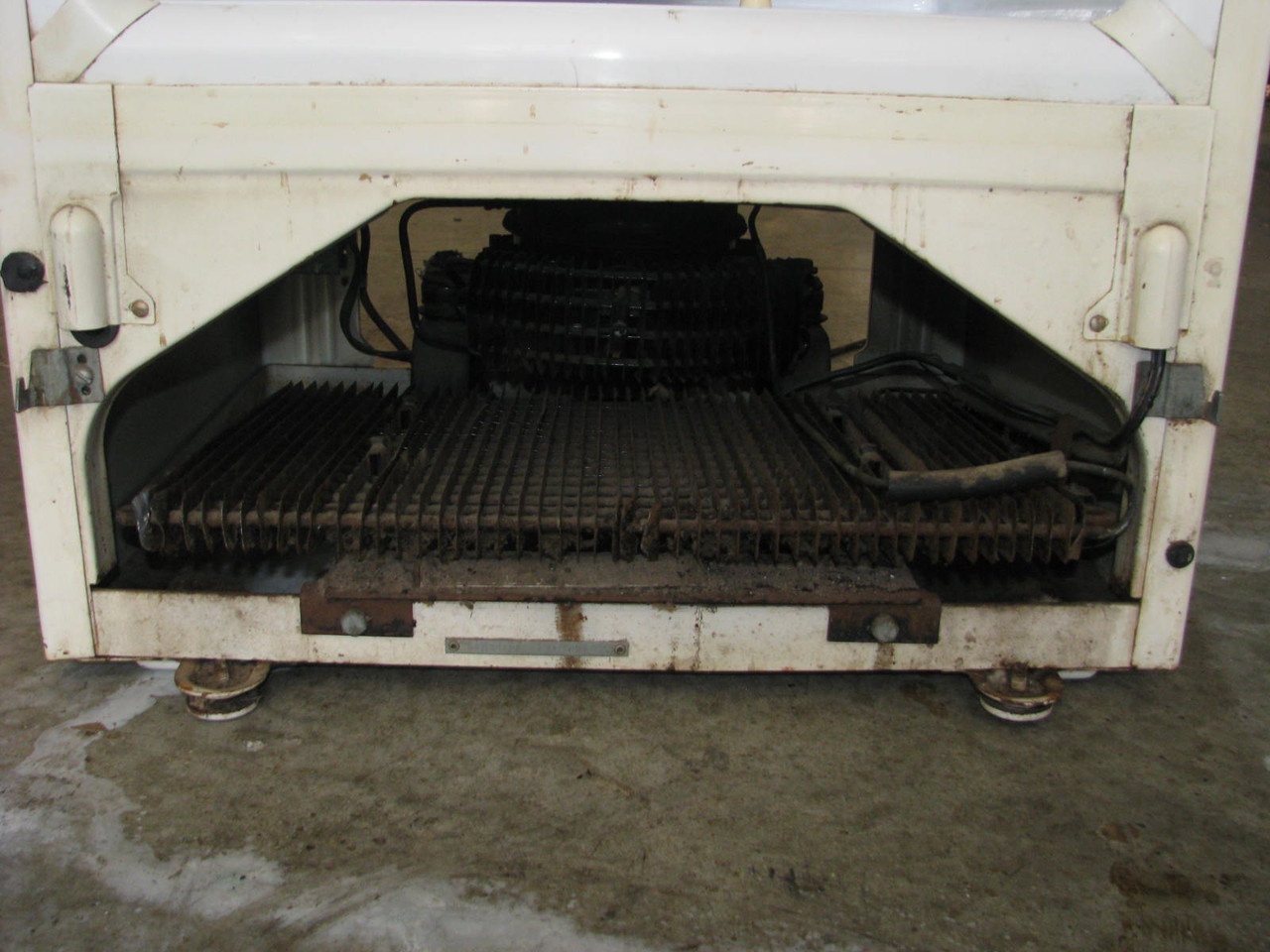

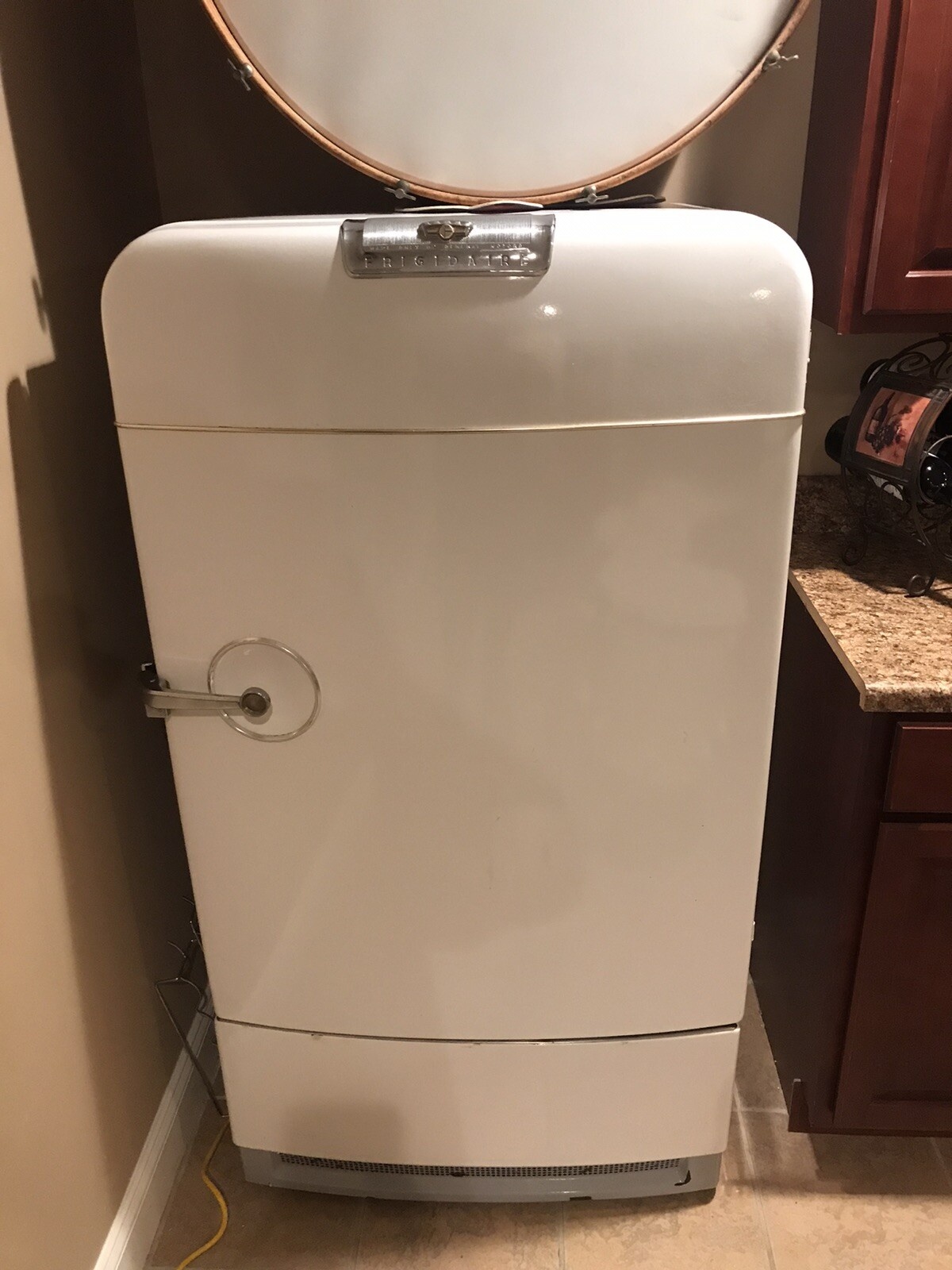

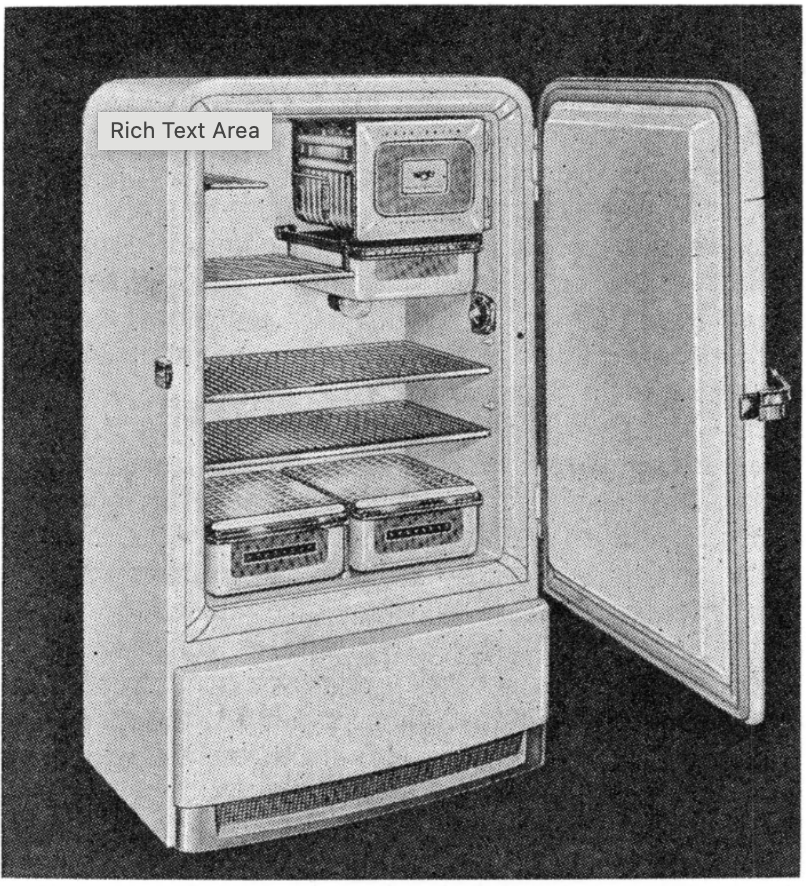

Pictures from the Internet
Specifications
FRIGIDAIRE PRODUCTS OF CANADA LTD
LEASIDE, ONTARIO
CABINET MODEL MM-76 C
CSA APP. NO. 6424
Model Codes
Model codes are interpreted as follows: The first letter in the code designates the type of refrigerator: "A" denotes apartment house model; "D" DeLuxe model; "M" Master model; "S" Standard model and "I" Imperial model. The second letter, "M" signifies the period of manu-facture, as 1950. The figure in the code repre-sents the cubic foot capacity of the cabinet. Example: "43" equals 4.3 cu. ft., "110" equals 11.0 cu. ft., etc. The suffix "P", indicates that models so designated are all-porcelain finished on the outside cabinet surfaces. The letter "F" added to the model designation for AM-43 means that a special flat top has been added.
Cabinet serial numbers are located on metal plates attached to the front lower cabinet horizontal, behind the removable apron or trim, below the door, on all models. Specifications are furnished in Table 1-2-IX. Wattage data are supplied in Table 2-2-IX
M | Master Model |
---|---|
M | 1950 |
76 | 7.6 cu. ft |
C | Dulux Exterior finish |
