Specifications


SpecificationDetails


Model970-705032
Amps8.5
Volts115
RefrigerantR134a
Charge4.75oz
Design Pressure (HS)351 psi
Design Pressure (LS)140 psi
Ice Maker KitJBCD-23

Problems/Errors

No Water- Frozen Water Line

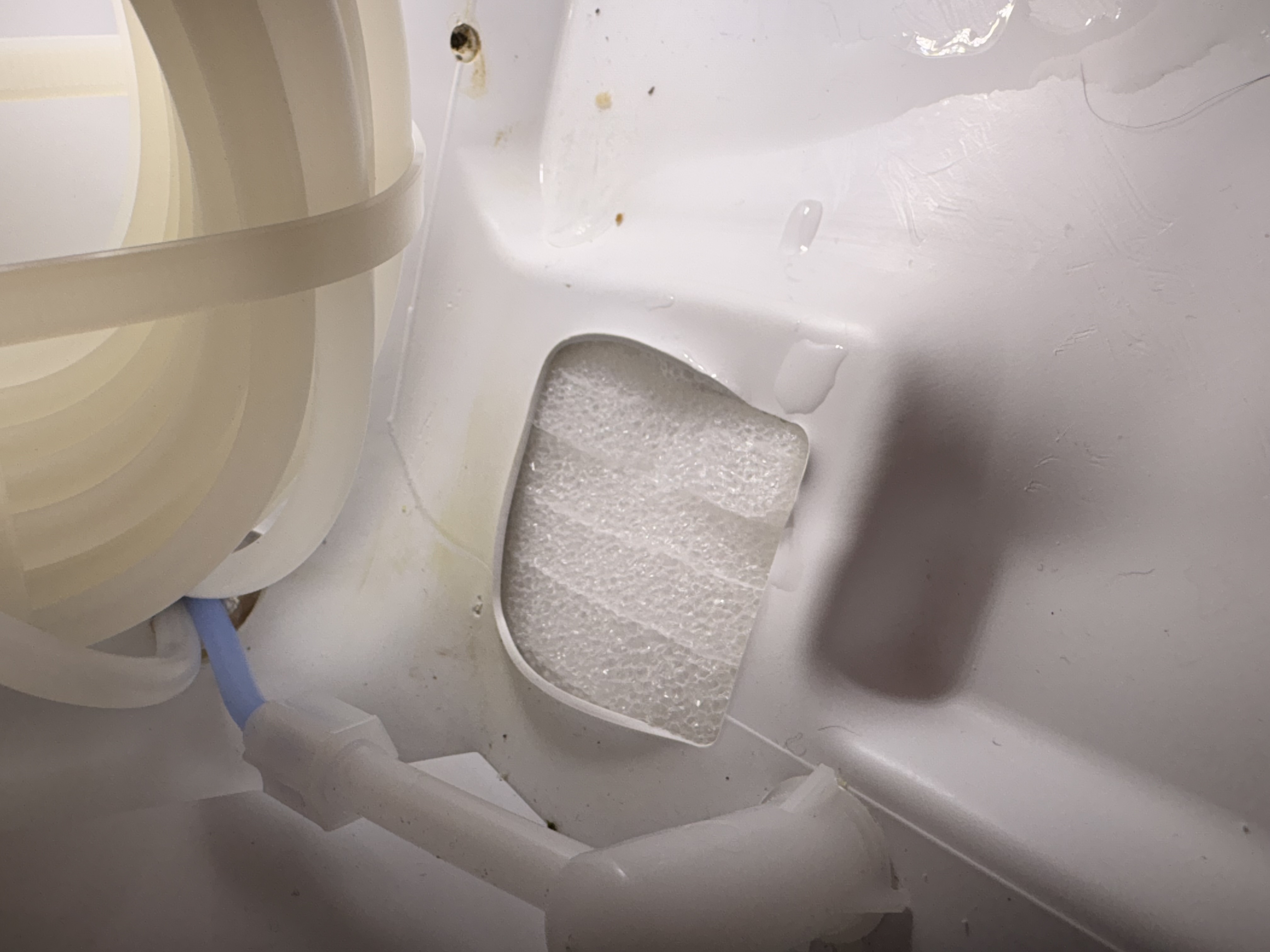

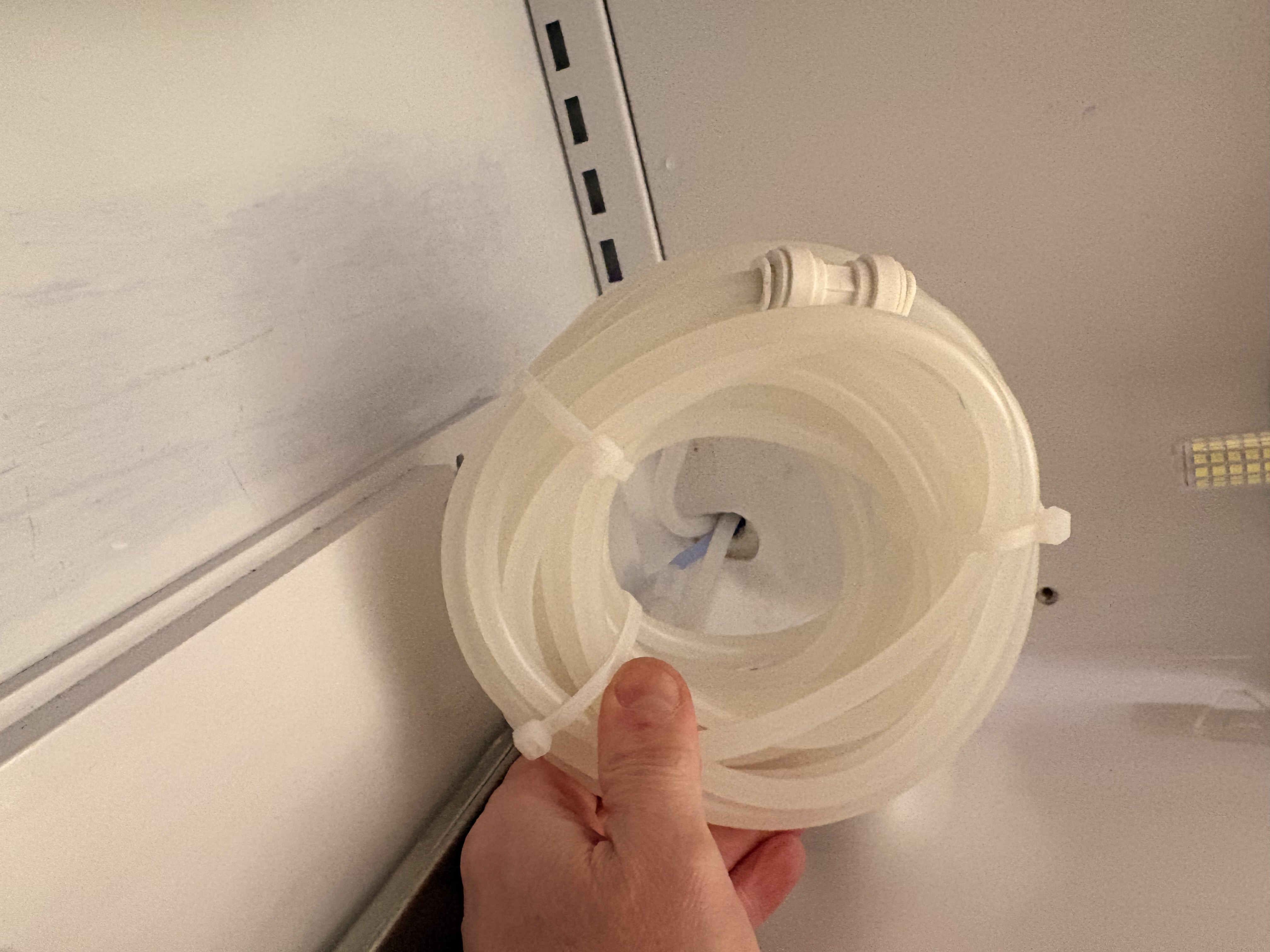

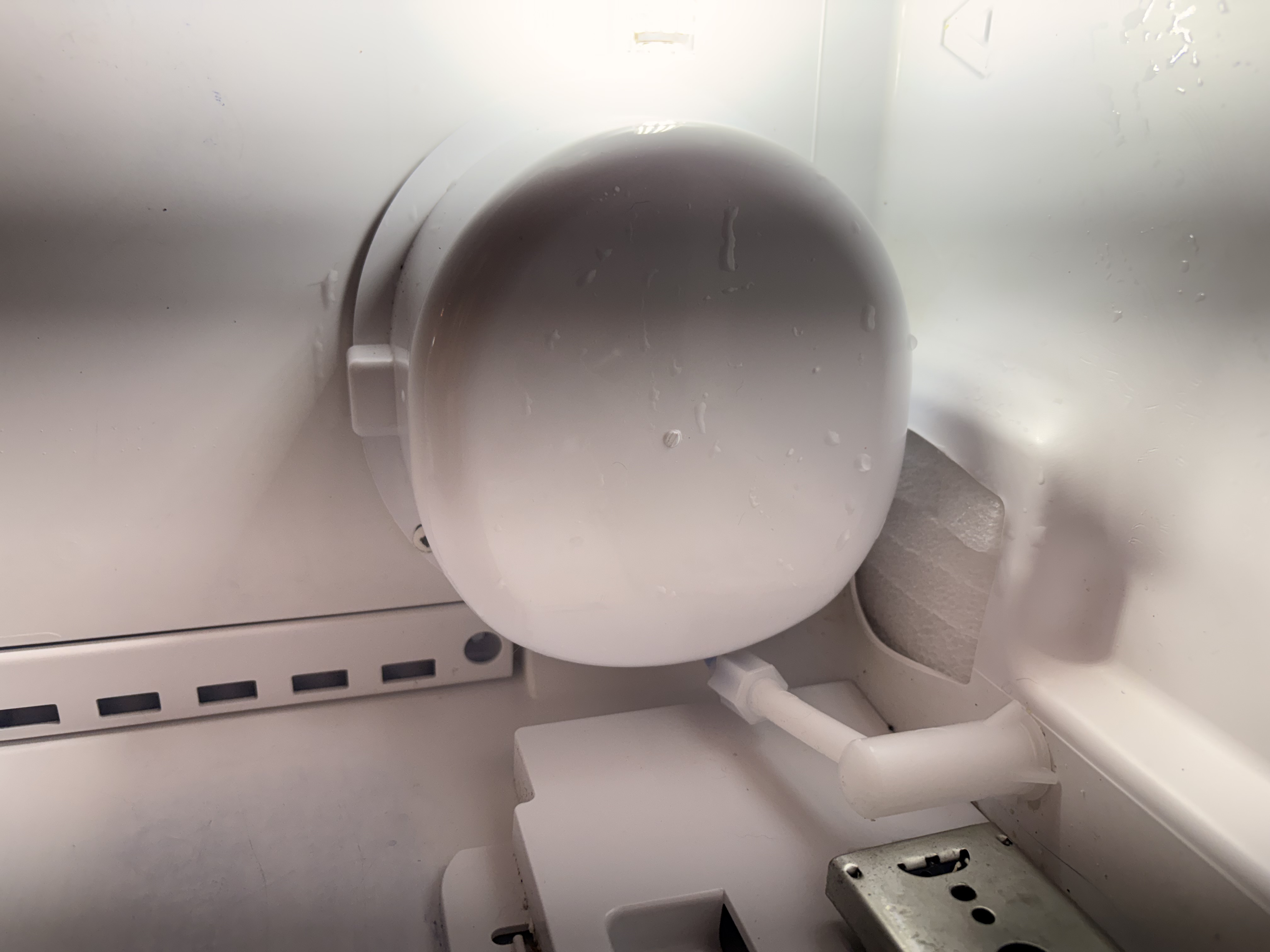

The water lines are coiled near where the cold air from the freezer enters the main compartment. Find and remove the protective cover and heat the line with a hair dryer on low heat.


Error CODE SY EF

The SY EF error code on a Frigidaire refrigerator means a problem with the freezer evaporator fan motor.

There’s likely an ice buildup preventing the fan blades from turning, caused by a faulty door gasket or restricted airflow inside the compartment.

Besides that, the fan motor could also be worn out, or the main control board could be faulty. With that error, the freezer and the appliance as a whole will continue to work. However, the freezer won’t be able to cool itself down thoroughly and reach your set temperature.


Evaporator Fan

The evaporator has a dedicated fan to make that cooling process more efficient. Its purpose is to blow cold air into the freezer compartment.More importantly, the fan distributes cold air to every corner of the freezer compartment, so all the food items you keep inside are equally cold. In other words, a working evaporator fan ensures that there are no warm spots anywhere in the freezer compartment of your Frigidaire refrigerator.


Ice buildup around the evaporator fan can be cause by:

  • faulty gasket around the freezer door
  •  restricted airflow

Reasons for evaporator fan failure:

  • fan motor has worn out
  • faulty main control board


Checking the Fan

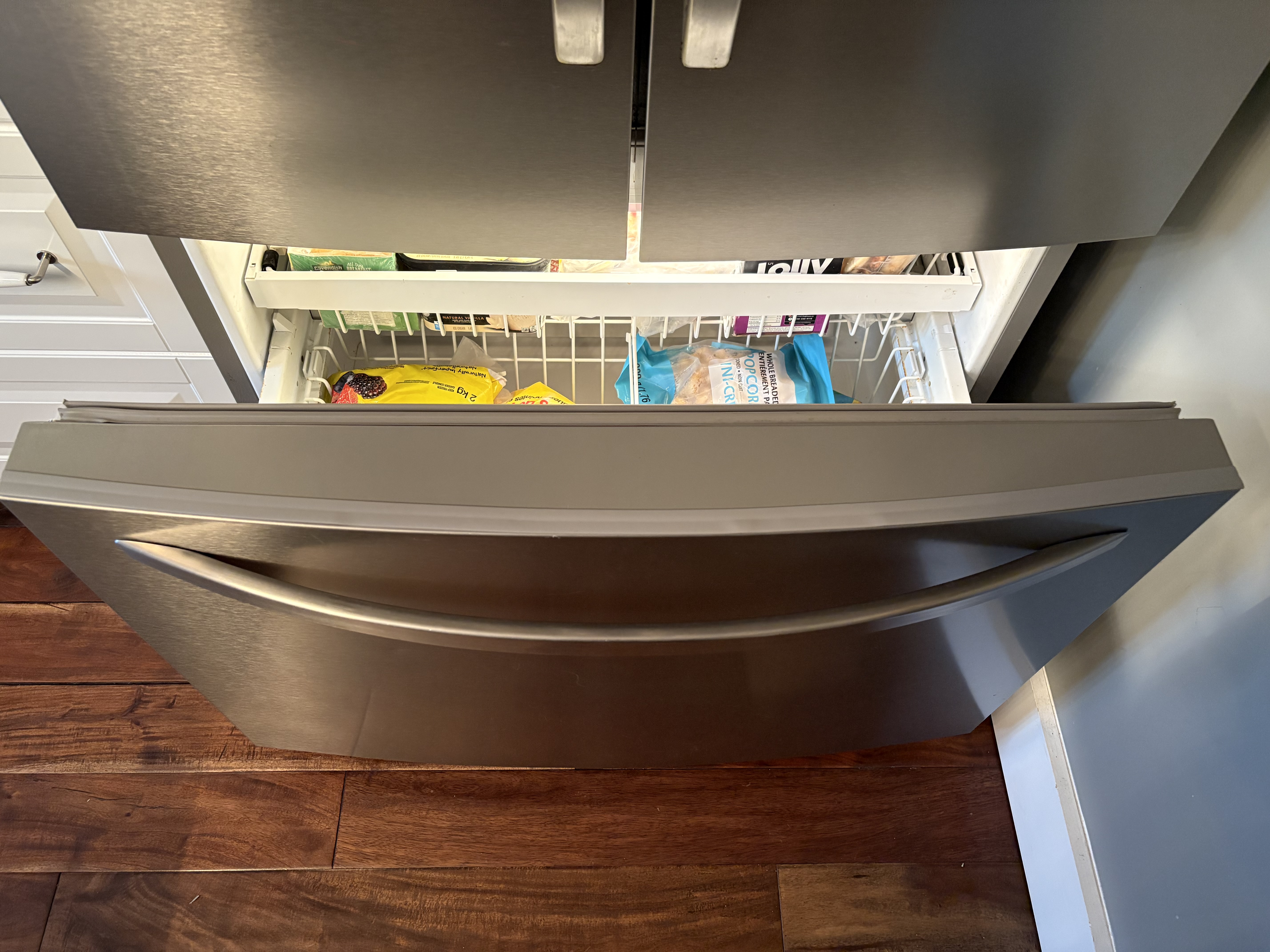

Remove the bottom freezer front by unscrewing the 2 screws on both sides of the drawer.

Remove the cover. With the front off, the freezer will turn on when the side rails are pushed in.

Check if the fan turns on when the drawer is closed.

Parts

Ice Maker Parts Breakout

Ice Maker Complete - 243297603 Ice Maker

Cabinet Breakout

Parts List

PartDescriptionImageURL

241675704

Ice Selector Solenoid

https://www.repairclinic.com/PartDetail/Crushed-Cubed-Ice-Solenoid/241675704/3016233?affSource=cj&cjevent=f00fea57f90411ea810f00c60a240612


Replacement Instructions

https://www.youtube.com/watch?v=KBEVZOHqgC4&feature=emb_title

241973711


Control Board
electrolux 24197370x 1.06

Bulb

E17 Base Bulb

https://www.amazon.ca/gp/product/B07VFBM3VY/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1


All-New 8W E17 LED Bulb | S11 T8 T7 E17 Intermediate Base | Microwave Oven Appliance Light Bulbs (75W E17 Halogen Bulb Equivalent), 850LM Daylight White 6000K,Appliance Bulbs, Oven light ,Microwave Oven, Stovetop Light,AC110V-130V 2-Pack by IAlight

Reference

ReferenceURL
Factory Parts Catalog
Frigidaire SY EF Error Code – Causes And Fixhttps://howtofixit.net/frigidaire-sy-ef-error-code-causes-and-fix/
