Overview
| Make | Karcher |
|---|---|
| Model | K 5.65 QC |
| PSI | 2000 PSI |
| Water Volume | 1.4 GPM |
| High Pressure Hose | 25 ft. |
| Unit Weight (with out accessories) | 32 pounds |
| Unit Dimensions | 13.5" x 13.8" x 34.3" |
| Child Safetly Lock | ✓ |
| Onboard Removable Detergent Tank | ✓ |
| Induction Motor | ✓ |
| Wheel | 2 Wheels |
Assembly
Problem
After disassembling the unit, I discovered that the water inlet was leaking at the seam of the pipe.
An attempt was made to repair by gluing on some pex pipe to the outside and clamping. This helped but did not fix 100%.
If I had used the right type of glue/pipe I might have had better luck.
So, I decided to order the part online ($20) for a total of $40 including taxes and shipping.
Parts Ordered
| Part | Image | Notes |
|---|---|---|
| Inlet Fitting |
| 9.755-400.0 Karcher Inlet Fitting Replacement Replaces 9.760-785.0 9.762-182.0 https://www.drmower.ca/products/9-755-400-0-karcher-inlet-fitting-replacement |
References
| Reference | URL |
|---|---|

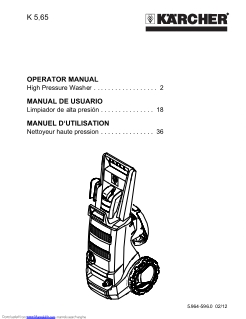

| Operation Manual | |
| Parts List | |
| Parts |
