Model

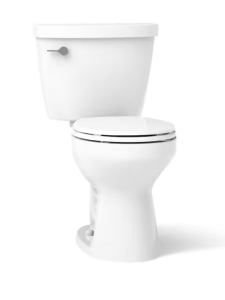

KOHLER Cimarron The Complete Solution 2-Piece Round Front Toilet, 4.8 LPF in White
Repairs
Toilet Handle Stuck Down
Problem
Sometimes the handle would get stuck in the down position causing water to run.
Solution
- Disconnect the chain and unscrew the white nut by turning clockwise. (Reverse thread).
- Remove the handle assembly
- Remove the metal screw where the lever connects to the handle. This is tight! Use impact driver and a vice if you can.
- Remove the white section and add silicon grease where it makes contact with the metal handle.
- Lubricate the metal shaft.
- Reassemble

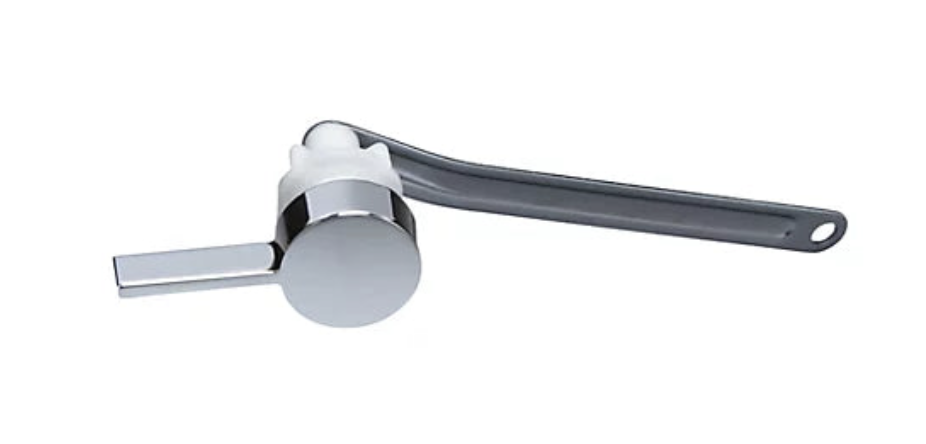

Optionally, you could replace with new handle for about $15 on Amazon. Probably a better long term solution.
https://www.amazon.ca/Kohler-GP1034693-CP-Cimarron-Chrome-Finish/dp/B001GZVTBC
Toilet Always Running

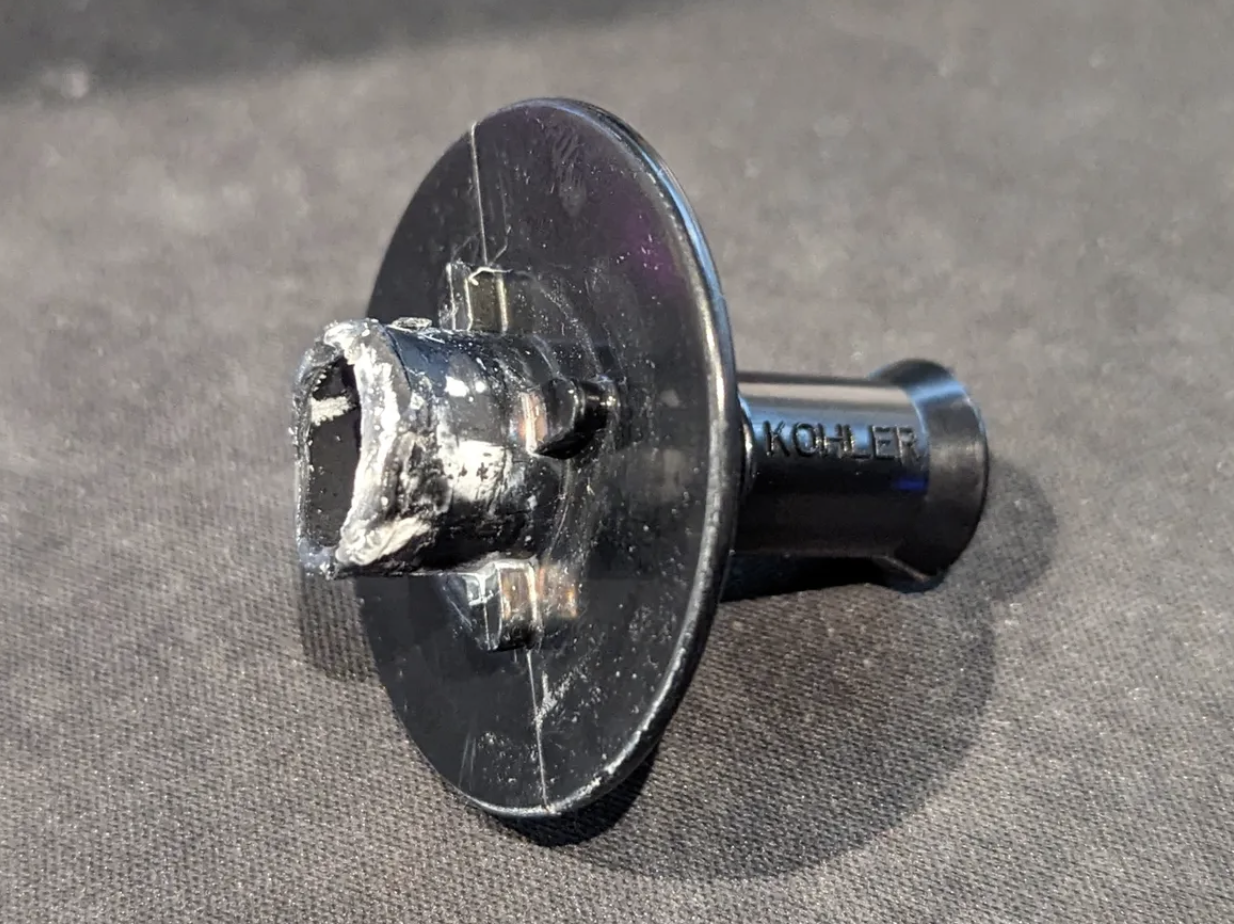

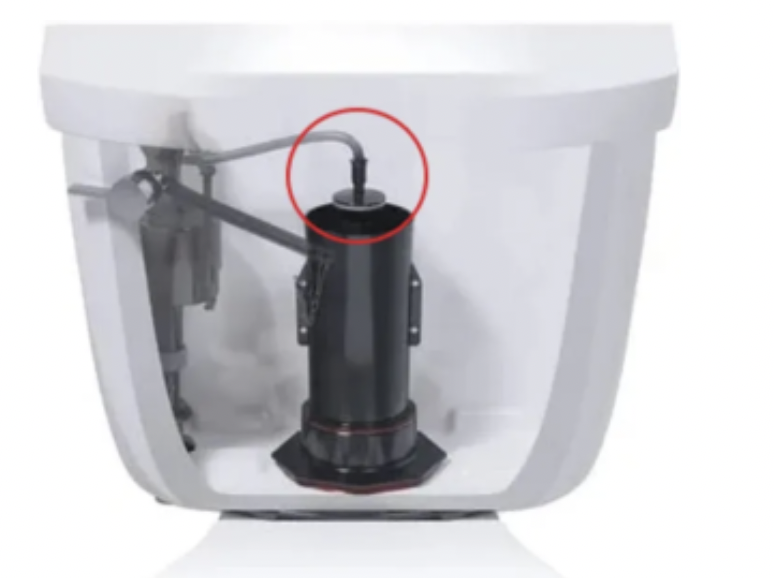

The fill tube adapter broke. Found a 3d model online to replace broken part.
Replacement Part:
https://www.printables.com/model/362087-kohler-toilet-fill-tube-adapter

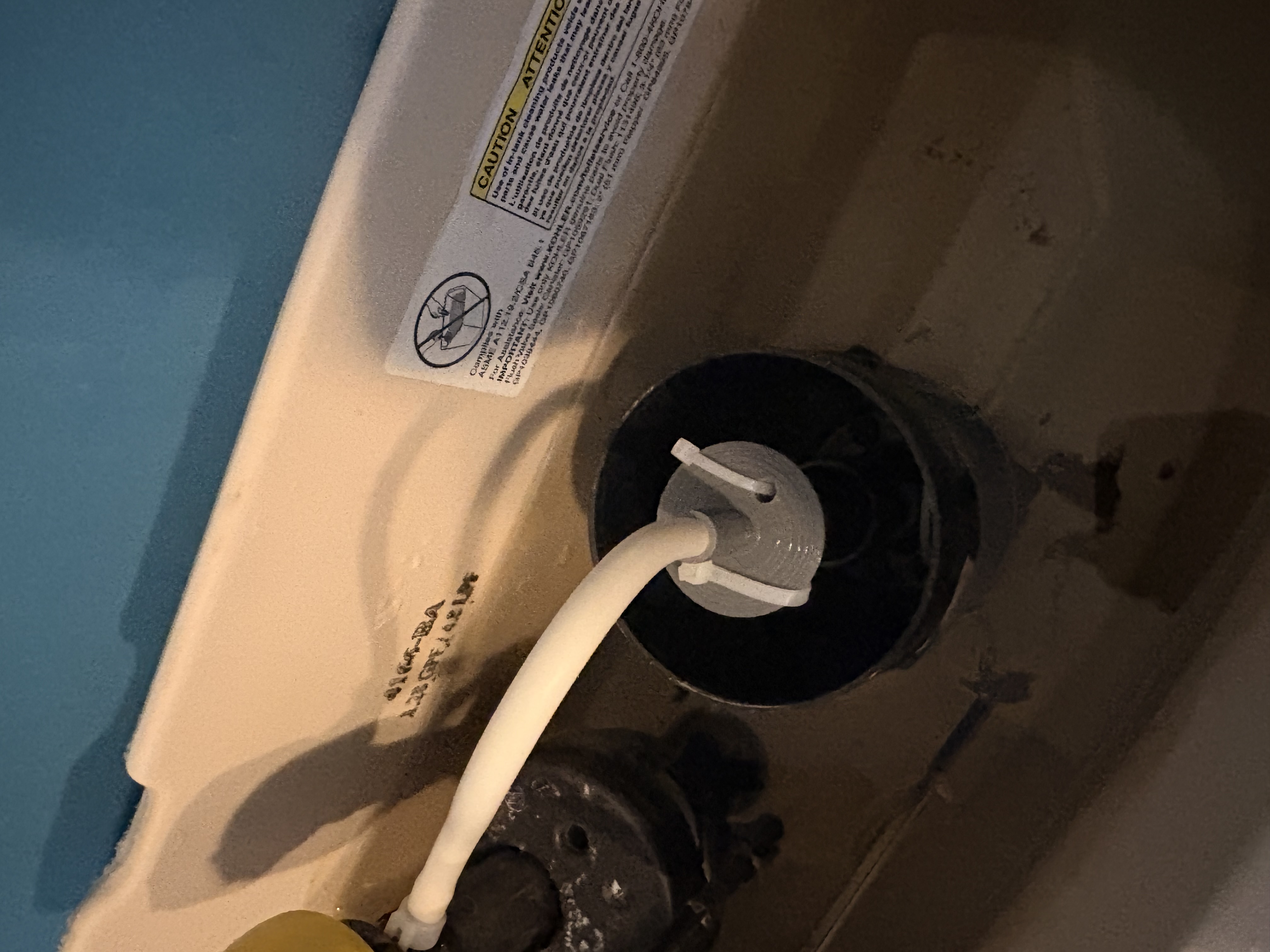

Unfortunately, this piece would sometimes pop out so I secured it by drilling some holes and zip tying it.
