Specifications

SpecificationValue
Shape

Oval

Length24'
Width12'
Shallow End3.5'
Deep End6.5'
Volume9220 US gal / 34,900 L


Configuration


Equipment


EquipmentSeriesMakeModelSN#Details
HeaterJandy Pro SeriesJandy JXi Gas-Fired Pool and Spa Heater260NLT EC02 0501 1919 0071

https://www.jandy.com/en/products/heaters/jxi

Installation:

h0574300.pdf


Quick Reference Guide:

h0454800.pdf


Seems to heat pool at 2-3 ºF/Hour

Chlorine GeneratorJandy Pro SeriesJandy TrueClear

https://www.jandy.com/-/media/zodiac/global/downloads/h/h0613500.pdf
PumpJandy Pro SeriesFloproFHPM.75CNDD16JA 2203

3/4 HP, Self Priming

WWW: https://www.jandy.ca/en-ca/products/pumps/single-two-speed-pumps/flopro

Manual: H0315300.PDF

Filter

Jandy Pro Series

CV Series Filters

CV340

Cartridge filter

340 sqft filter capacity

Manual: H0291800.PDF


Parts

Pump

https://www.poolsuppliescanada.ca/jandy-flopro-fhpm-pump-parts


PartDetails
10

Jandy R0446000 - Drain Plug

https://www.poolsuppliescanada.ca/jandy-r0446000-drain-plug.html

17Jandy R0337601 - O-Ring (Tailpiece)


Heater

https://www.poolsuppliescanada.ca/jandy-jxi-pool-heater-parts


PartImageLink
Jandy R0522900 - Universal Half Union

https://www.poolsuppliescanada.ca/jandy-r0522900-universal-half-union.html

https://www.poolsuppliescanada.ca/jandy-r0449000-tailpiece-with-union-nut-set-of-2-polymer.html

https://www.poolsuppliescanada.ca/jandy-r0461800-universal-half-unions-set-of-3-and-drain-plug-cap-2-inch-by-2-1-2-inch.html

Universal Half Union O-Ring


2 5/8"x 1/8"

https://www.amazon.ca/dp/B000FN0X7C?psc=1&ref=ppx_yo2ov_dt_b_product_details


Filter

https://www.poolsuppliescanada.ca/jandy-cv-series-cartridge-filter-parts

PartDetails
23 O-rings
R0358000 O-Ring Replacement Kit for Zodiac Jandy DE DEL DEV CL CV Series Cartridge Pool Filter, Compatible with Models CV340 CV460 CV580 CL340 CL460 CL580 DEV48 DEV60 DEL48 DEL60

https://www.amazon.ca/R0358000-Replacement-Zodiac-Cartridge-Compatible/dp/B09SH2PVRD/ref=sr_1_9?keywords=jandy+filter+o+ring&qid=1684335866&sprefix=jandy+filter+o-%2Caps%2C111&sr=8-9

https://www.poolsuppliescanada.ca/zodiac-r0358000-o-ring-replacement-kit.html


Liner

PartDetails
Pool Bead Lock

https://www.amazon.ca/dp/B09CKQD25W?psc=1&ref=ppx_yo2ov_dt_b_product_details


Automation/Timers

Pump Timer

Controlled by Sonoff Admin UI:  http://192.168.1.165

TimePump
8:00 AMON
10:00 AMOFF
10:00 PMON
3:00 AMOFF

Total Time: 7h/day

Heater

Controlled via HomeKit. See Pool Heater Controller

http://192.168.1.164/

TimeHeater
10:05 PMON - 84F
9:00 AMOFF

Total Time: <= 6h/day

Chlorinator Settings

Cell SettingsPump Time/dayResults
80%7hPerfect


Opening the Pool

Tasks

  • Remove cover, dry, fold and put away
  • clean salt cell
  • ensure power and gas are off
  • connect salt cell
  • connect pump
  • install drain plug for heater
  • add filters to filter basket and seal


  • remove plugs from returns and skimmer
  • install return diverters and aim downward towards each other when using barracuda.
  • install return diverters and aim clockwise


  • run water into pump to fill up intake line.
  • turn pump on


  • install pool thermometer (ink-bird)




  • test pool water and submit to pool company for analysis
    •  add chemicals as needed

Closing the Pool

Buy

  • Winterizing Chemicals
  • Gizzmo
  • Antifreeze
  • Cell cleaner

Preparations

  • Balance Pool Chemicals
  • Vacuum and Clean
  • Add wintering chemicals

With the pool circulating add the following chemicals 15 minutes apart around the edge of the pool:

Continue to circulate water for 24 hours after adding chemicals.

Tasks

  • Turn off pool timers - pool.jmehan.com
  • Set heater to off.
  • Turn power off.
  • Turn off gas using external shutoff.
  • Drop water level below returns by about an inch or so using sump pump (about 5 hours).
  • Remove return jets


  • Depressurize system by releasing air from top of filter.
  • Remove pump drain plug and disconnect pump.
  • Attach zip lock bag over wires and secure with an elastic.
  • Drain cartridge filter and remove pleated filters.
  • Clean filter parts and put in filter and re-seal.
  • Plug pump output with #11 plug and force air through filter drain. This will force air through the return lines.

  • Plug one return using plugs to force water out other line and then repeat with the other line.
  • Remove drain plug from heater and force out water with air.

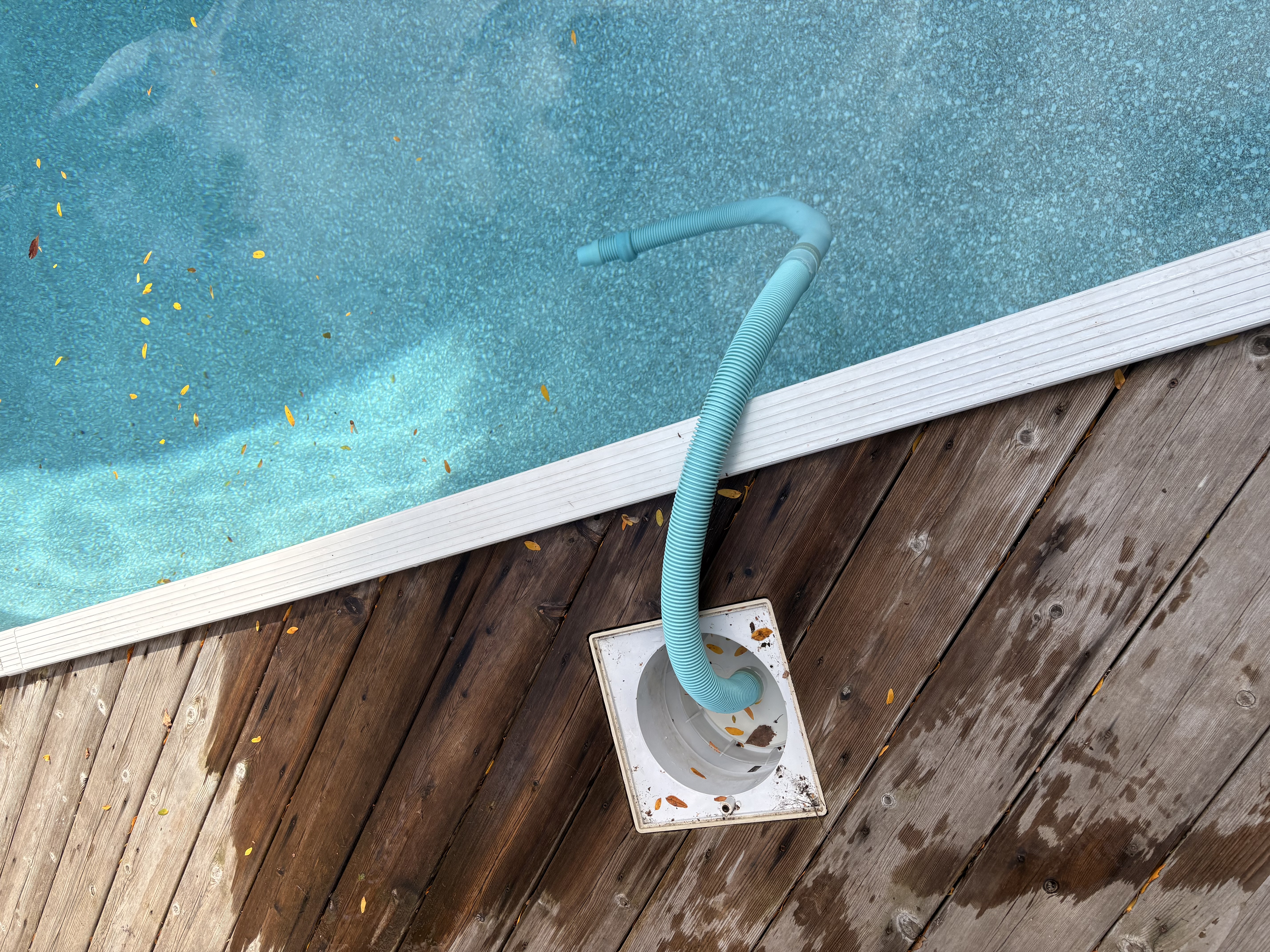

  • Vacuum water from skimmer and force air through intake(skimmer) line.


  • Add antifreeze to skimmer drain and attach "gizmo" and extra section of pool noodle.
  • Add antifreeze to return lines and plug.
  • Plug pump Input with #11 plug.
  • Remove salt cell and install winter cap.
  • Clean filters.
  • Store pump, salt cell inside. Store filters inside garage attic.
  • Install Cover


Water Chemistry

Important

Always

  • Turn off cell for 24 hours after adding salt
  • Wait 48 hours after shock before getting sample for water test


Chemicals


Water Report - 2019

ReadingValueStatusDesired StateCalculated Chemicals NeededWhat I addedResult (Next Morning)
Salt0Low3200 ppm267 lb Salt

267 lb (120kg) x 0.8

= 213 lb (97kg)

Added 100 kg

-
Chlorine0Low

Shock (Swim Resolve ~ 600g)4 Ideal → OK
Alkalinity50Low120 ppm7 lbs of sodium bicarbonate7 x 0.8 = 5.6 lb100 OK
Ph7.2OK
-
7.8 OK
Hardness100Low400 ppm24 lbs of calcium chloride7kg / 17.6 lbs350 OK


After 1 week Added:

PropertyChemical AddedAmount
Alkalinitysodium bicarbonate (Alka Up)2.5 kg
PhPh Down630g
-Liquid Stabilizer4.8L
AlgaePhosRemove940 mL


Adding Chemicals

  • Add Alka Plus
  • Add Calcium Plus

Wait 1 hour

  • Add Shock

Wait 24-48 hours

  • Add Salt
  • Turn off cell for 24 hours after adding salt


Wait 48 hours after shock before getting sample for water test


Settings

DateCell SettingsPump Time/dayResults
June 26100%8hChlorine High
June 2760%8hPerfect



Water Report - 2020



Water Report - 2021

ReadingValueValue (wc)StatusDesired StateCalculated Chemicals NeededWhat I addedResult (Next Morning)
Salt
2350
3200 ppm

x lb Salt

wc: 22.7kg

-

-
Chlorine00.5




Alkalinity100 ok66.81
120 ppm

0 lbs of sodium bicarbonate

wc: 4.3kg

3.0kg (need 1.3kg)
Ph6.8 (low)7.4

-

Hardness100 (low)156
400 ppm

calc: 24 lbs/11kg of calcium chloride

wc: 3.5kg

3.5kg
Phosphates
2000

phos remove

wc: 1.4L

600ml (need 800ml)
TDS3050





Stabilizer29





Taylor Drops3





Copper0.6





Iron0.2










swim now

wc: 1 bag

1 bag





stain and scale

wc: 435ml

450ml


Water Report - 2022

Opened pool and added:

  • SwimNow/Oxidizer(shock)
  • 600 ml PhosRemove


Afterwards:


---

Added 20Kg Salt

Added 400ml PhosRemove (instead of Clarita Ultra 2:1)

Added 1.5 kg Calcium


Water Report - 2023


Test Strip Results (June 1st)

ReadingValueValue (pool master)StatusDesired StateCalculated Chemicals NeededWhat I AddedResult (Next Morning)
Hardness100250Low400 ppm24 lbs of calcium chloride*Added 8 lbs
Chlorine01 ok


-
Alkalinity4060Low120 ppm

7 lbs of sodium bicarbonate

-
Ph6.56.5Low7.218 ounces of soda ash (sodium carbonate)-


Water Test Report (June 13th)


ReadingValueStatusDesired StateCalculated Chemicals NeededWhat I AddedResult (Next Morning)
Hardness252Ideal200-300--
Chlorine2.56

--
Alkalinity78Low80-120

 1kg of Alka+

1kg Alka+
Ph7.8High7.4-7.6210 g PH-210g PH-
Stabilizer3Low30-60600g Stabilizer3 stab ultra pucks to skimmer
Salt2349Low300022 kg Salt (1 bag = 20kg)20kg - 1 bag salt



Water Report - 2024

Opened on May 20th. Filtered and vacuumed. No chemicals added.


Test Strip Results (May 23 rd)

ReadingValueStatusDesired StateCalculated Chemicals NeededWhat I AddedResult (Next Morning)
Hardness350ok200-300
-
Chlorineokok

-
Alkalinity80ok80-120
-
Ph7.5ok7.5
-
CyA20low50


Salt600low3000



Test Report  (May 23 rd)

OrderReadingValueStatusDesired StateCalculated Chemicals NeededWhat I AddedResult (Next Morning)

Hardness250OK200-300--

Chlorine1.5OK1-3 --
1Alkalinity50LOW80-120 3 kg Alka+1.5 kg Alka+

Ph7.2OK7.4-7.6-

3Stabilizer (CyA)0low30-60

Broadcast 4 kg of PROTECT CELL ULTRA 3 IN 1.

Slowly pour 700 g or 4 cups of STAB in the skimmer.

3 stab ultra pucks to skimmer
2Salt1920low300036 kg Salt20kg - 1 bag salt


After a couple of weeks, notice the Ph was high.

ReadingValueStatusDesired StateCalculated Chemicals NeededWhat I AddedResult (Next Morning)
Ph8.0OK7.4-7.6480g Ph-300g Ph-


Chemicals

Always

  • Turn off cell for 24 hours after adding salt
  • Wait 48 hours after shock before getting sample for water test



Chemical

Active IngredientUsed For
Calcium+calcium chlorideIncrease Hardness
PH-sodium bisulfateDecrease PH
PH+sodium carbonateIncrease PH
Alka +sodium bicarbonateIncrease Alkalinity
Stabilizercyanuric acidStabilizes Chlorine
Stab Ultra (pucks)cyanuric acid

Stabilizer

Each puck is 200g

Clarita Ultra
Water Clarifier
Shock


BluePrint

https://blueprintpool.com/application/files/6315/6457/7377/BLUEPRINT_Catalogue_2019.pdf

SwimNow = Oxidizer (Shock)

SwimWeekly = PhosRemove?


Pool Opening/Closing Kit

Pool Opening Kit which includes:

  • 1kg Oxidizer (Chlorine-free oxidizing shock)
  • 1L Stain Scale ****
  • 1L Super Algae 40


DIRECTIONS FOR USE:

  • Ensure that you have already filled your pool with water and the pump is running
  • Add the stain and scale product to the pool to allow the pump to circulate the water for approximately 30 minutes
  • Broadcast across the surface of the pool, the oxidizer and allow for the pump to circulate for approximately 60 minutes
  • Add the bottle of algaecide by walking around the edge of the pool and allow for chemicals to continue to circulate overnight
  • The following day, test the pH and ensure that it is between 7.2 – 7.6
  • Start chlorinating your pool


Pool Records

YearFirst in the PoolFirst UnderwaterLongest Swim
2019June 10 (60F): John → Katie → Xander → JennyJune 10(60C): XanderJune 10 (60C): Xander (15-20mins)
2020May 3 (47F): Katie → JennyKatie, Jenny
2023May 31st (80F): JohnJohnJohn


Safety Cover


Anchors

We will strengthen these brass anchors. We start with a 2" piece of metal, drill some holes and thread them for a #6-32 screw.



Again using a 3/4" washer:



Pictures


Suppliers

SupplierURL
Pool Supplies Canadahttps://www.poolsuppliescanada.ca/
Pool Store Canadahttps://www.poolstorecanada.ca/


References

ReferenceURL
Water Chemistry Calculatorhttps://www.hayward-pool.com/shop/en/pools/water-chemistry-calculator
Winterizing Videohttps://www.youtube.com/watch?v=2Egqm4mep7k
