Overview
We are going to install some flexible solar panels on our boler.
Design
We are going to be using 2x 100W solar panels wired in parallel.
Parts
| Item | Picture | Link |
|---|---|---|
| Solar Panels |
| |

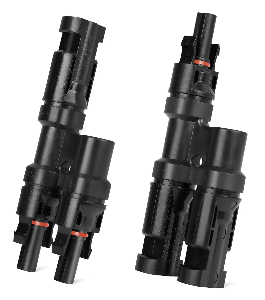

| Y Connectors |
| |
| 12 AWG Adaptor Kit |
| |

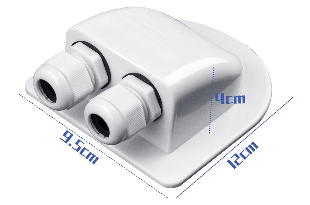

| Solar Cable Entry Gland |
| |

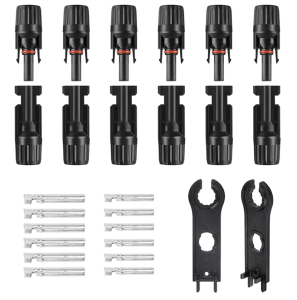

| Solar Connectors |
| |
| 3M Double Sided Tape 2" |
| |
| 3M Tape Primer |
| |

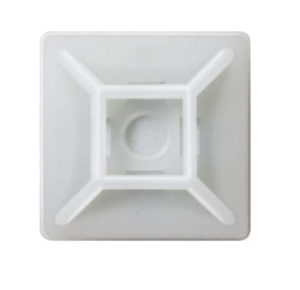

1-inch Mounting Base Remove existing adhesive and use 3M tape. |
| |
| Black Zip Ties | ||
| Isopropyl Alcohol |
Attaching the Panels to the Roof

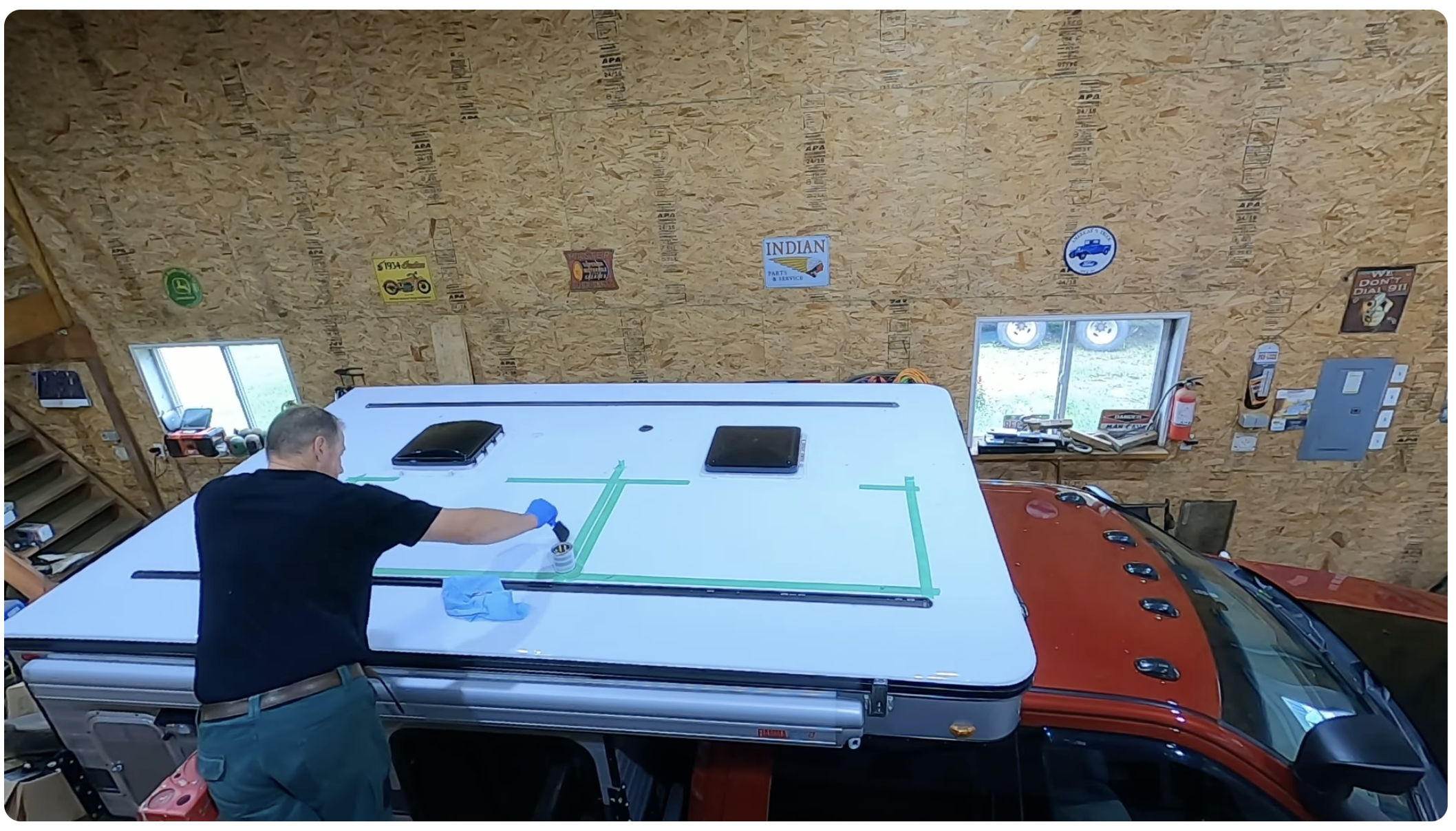

- mask area with painters tape
- clean roof area with Isopropyl Alcohol and wait 10 minutes
- apply 3M Tape Primer to the roof
- clean solar panels with Isopropyl Alcohol
- apply 3M tape primer to roof with a foam brush and wait 15 minutes
- apply 3M tape primer to solar panels and wait 15 minutes

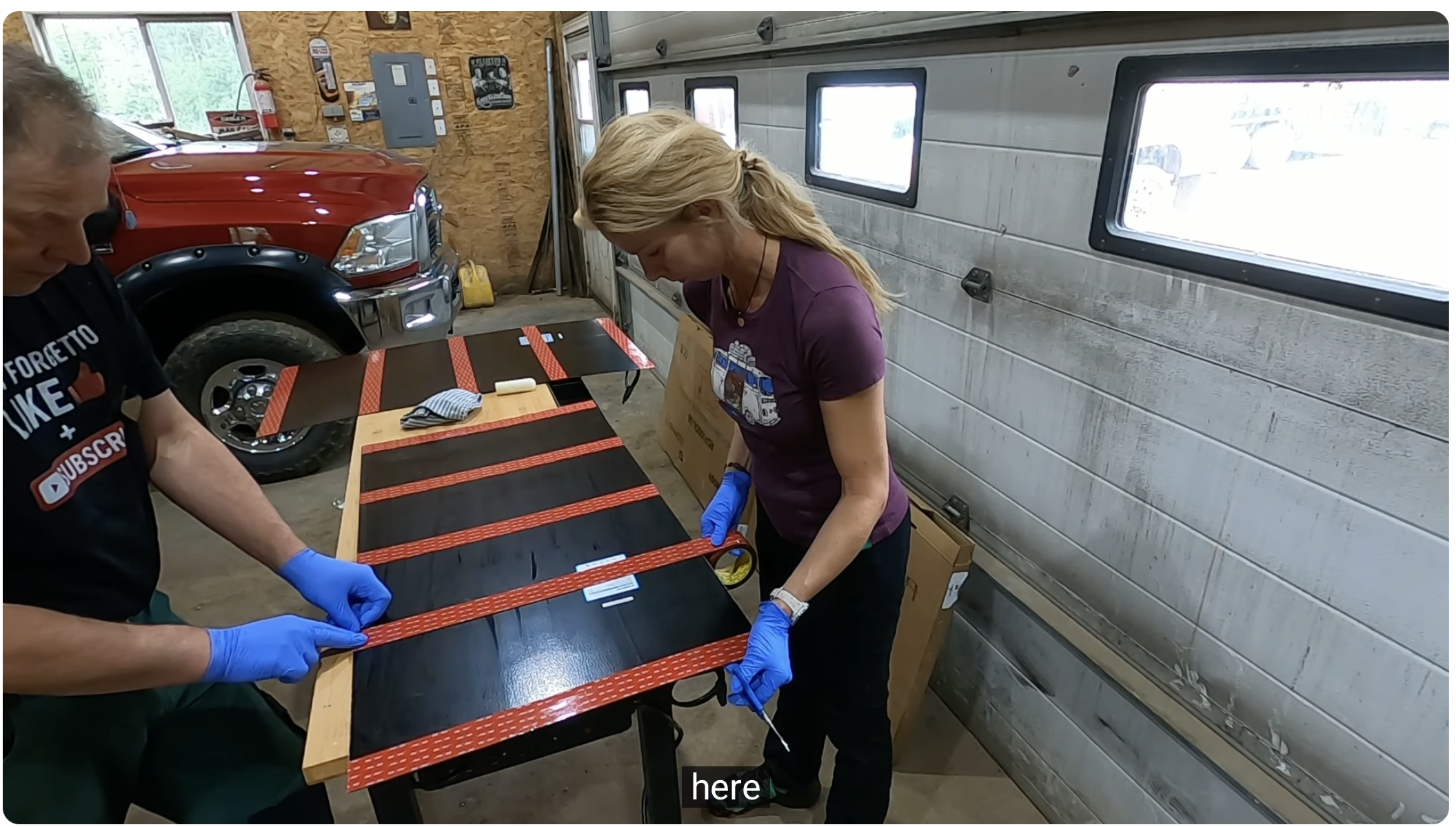

- add tape to solar panel and apply some pressure to help it adhere to the panel

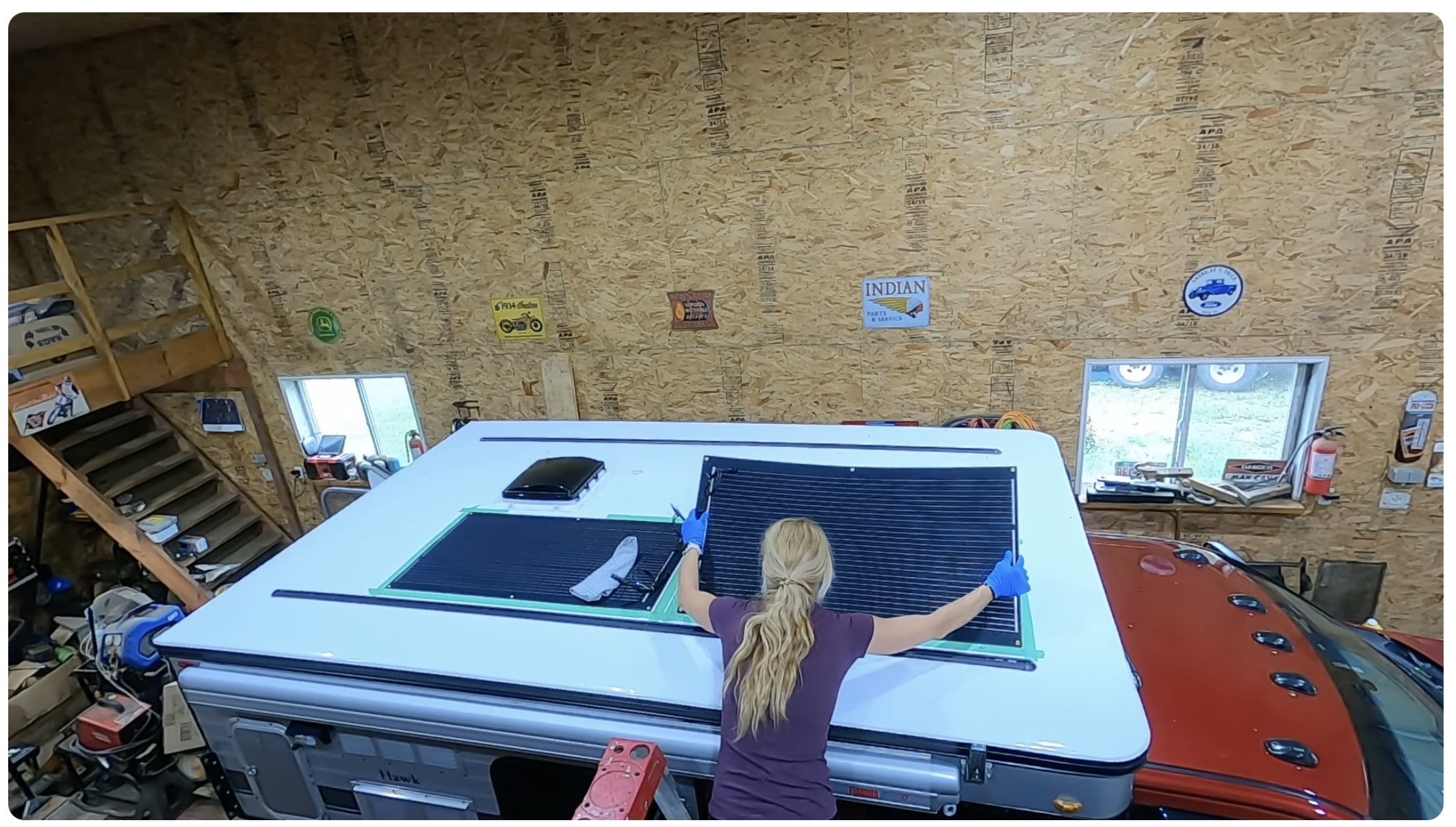

- place panels on roof
- let the panel adhere in a stable environment for 24 hours.

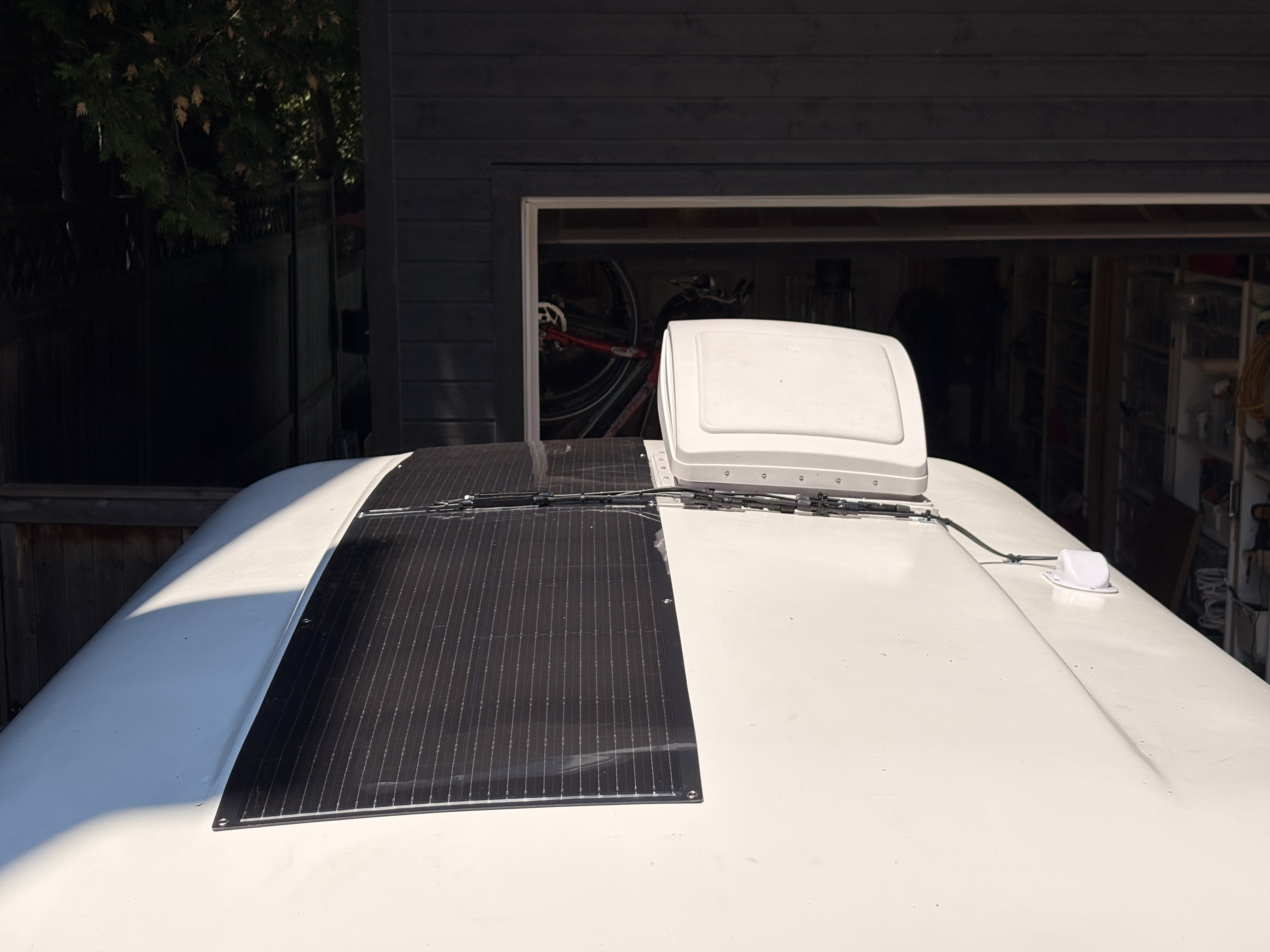

Pictures
References
| Reference | URL |
|---|---|
| MC4 Install Crimping Easy DIY | https://www.youtube.com/watch?v=CFgRCBzquz4 |

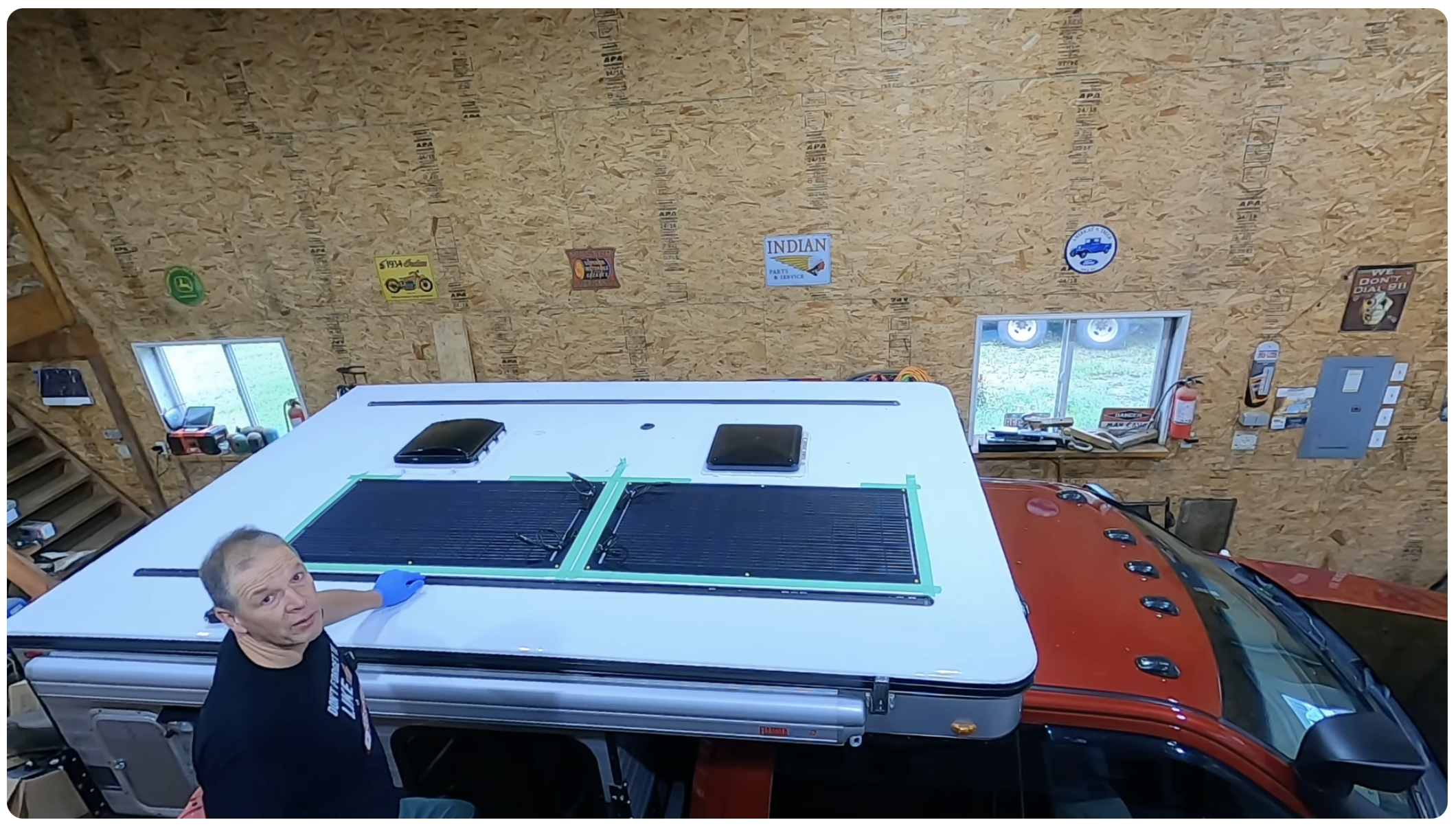

| Flexible Solar Panel Install on Pop-Up Camper | No Screws, No Stress | https://www.youtube.com/watch?v=aHXs0Wc-NnE |
