Installing Kodi
Pre-Requisites
- Download IOS Signer from https://dantheman827.github.io/ios-app-signer/
- Download/Install XCode

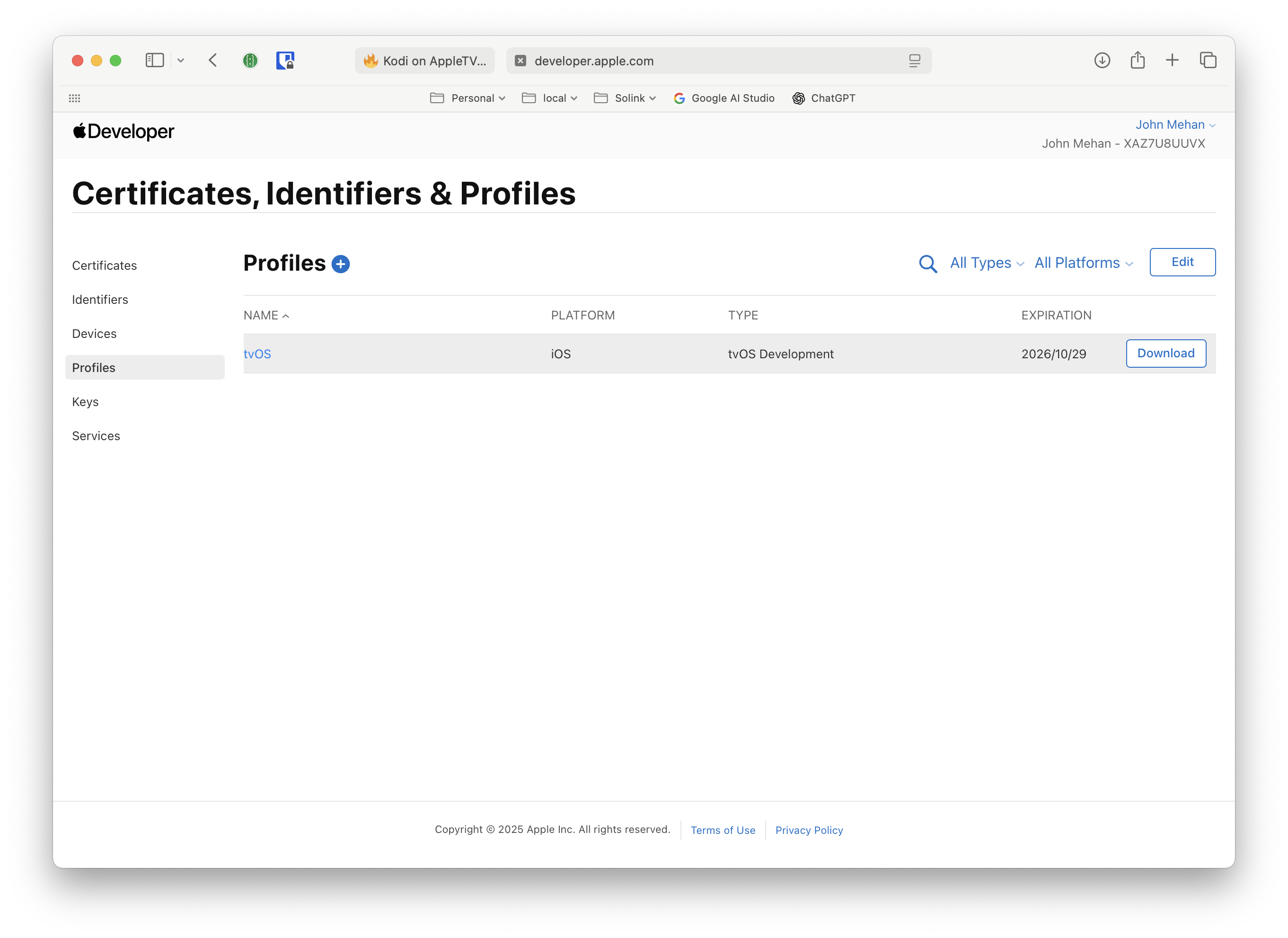

Configure Apple Account
You will need a developer account unless you want to have to re-install the app every 7 days.
- Open XCode
- Setup your account
Create Basic App
Open XCode and select File->New→Project
Select TVOS and Single View App and click Next.
Add your AppleTV to Xcode
- Navigate to Settings>Remotes and Devices>Remote App and Devices on your ATV4.
- Go to your mac and use Xcode's Window menu >Devices and Simulators..you should see your ATV4 in the Discovered list on the left.
- Click on the Apple TV Icon in Devices panel... it will ask you for a Pairing Code that is displayed on the ATV4.
- Enter the code and Xcode should begin pairing with the ATV4.
Download Kodi Deb File
Download a stable version of kodi for TVOS from http://mirrors.kodi.tv/releases/darwin/tvos/
Version 20.1 has joystick support enabled by default which requires you to disable it before being able to use with your remote.
So I installed version 19.5: org.xbmc.kodi-tvos_19.5-0-tvos.deb

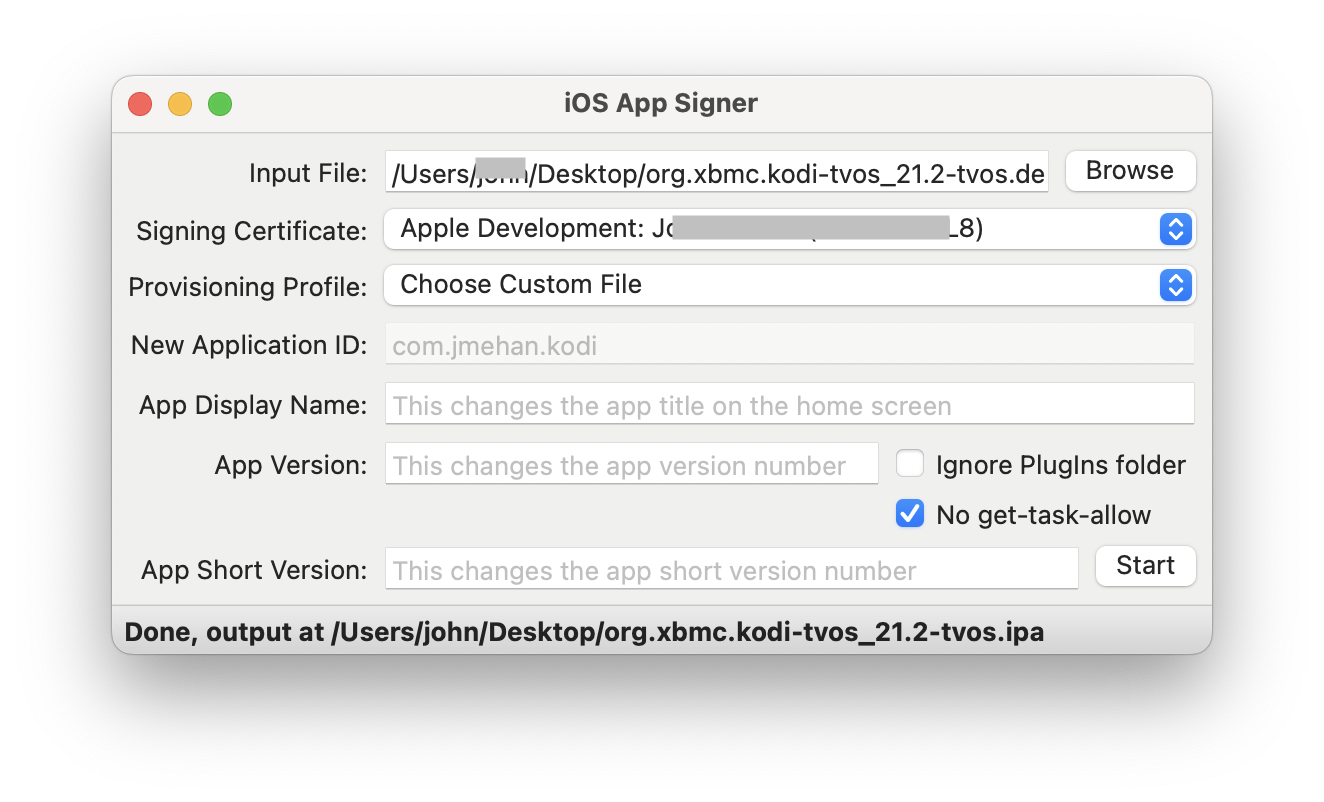

Sign the Kodi Deb File
Select the Kodi Deb file for the input file.
Select the signing certificate and provisioning profile.
Click Start
Give it a name and Select your team.
Transfer Kodi to AppleTv
Open up the Devices and Simulators from XCode->Windows→Devices and Simulators
Select your appleTV from the device list. You may need to connect your USB-C cable to your appleTV if you don't see your device.
Click the + icon and select the signed kodi ipa file:
Wait for it to install and enjoy!
Add-Ons
http://www.narcacist.com/repo/
Configuring Samba Mounts
Enable Samba Client Version 1 to 3 by going into Settings → Services → SMB Client.
Set minimum to v1 and max to v3
home:
URL: smb://192.168.1.60/tv/
tripmate:
URL: smb://10.10.10.254/UsbDisk1_Volume1/
Issues
AppleTV clears it's cache which uninstalls Kodi's Add-Ons.
TvOS grants 500Kb of permanent storage. Everything else is in a "cache" directory which can be cleared by tvOS whenever it sees fit.
https://forum.kodi.tv/showthread.php?tid=329625
If you're stuck using a fire stick and are unable to upgrade to a better device, then you need to use the "EZ Maintenance" addon. You can set it to auto clear cache, but more importantly you can set the preset for running a weak device, which should increase your overall performance.
Install openwizard addon and set auto cleanup of cache on startup.
Installed EZ Maintenance, didn't help.
Turns out that if you have an update available, tvOS will clear out extra space. The solution is to turn on automatic updates. After an update, you'll have to reinstall your plugins. Without installing the update, tvOS will reset Kodi every day until you update.
